电压基准, 串行-固定, 1.25V, 0.24%, ±10ppm /°C, UCSP-5
The from Products is a precision, low power, low dropout voltage reference in 5 pin UCSP package. The MAX6023 series-mode three-terminal references which operate with input voltages from 2.5V to 12.6V. Device is guaranteed an initial accuracy of ±0.2% and 30ppm/°C temperature drift over the -40°C to +85°C extended temperature range. UCSPs offer the benefit of moving to smaller footprint and lower profile devices. The significantly lower profile of the UCSP makes the device ideal for height critical applications. The MAX6023 voltage references use only 27µA of supply current. Typically used at hand held equipment, data acquisition systems, industrial and process control systems, battery operated equipment and hard-disk drives.
电源电压DC 2.50V min
容差 ±0.24 %
输入电压DC 2.50V ~ 12.6V
输出电压 1.25 V
输出电流 500 µA
供电电流 35 µA
通道数 1
针脚数 5
输入电压Max 13.5 V
输出电压Min 1.25 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.5V ~ 12.6V
安装方式 Surface Mount
引脚数 5

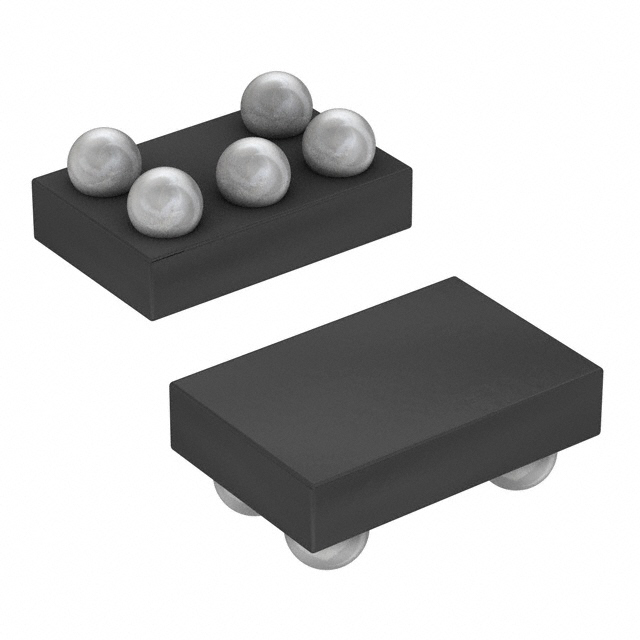

封装 UCSP-5
封装 UCSP-5
工作温度 -40℃ ~ 85℃
温度系数 ±30 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 电源管理, 工业, 便携式器材, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX6023EBT12+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX6023EBT12-T 美信 | 完全替代 | MAX6023EBT12+T和MAX6023EBT12-T的区别 |
MAX6023EBT12 美信 | 功能相似 | MAX6023EBT12+T和MAX6023EBT12的区别 |
