MAX14578EETE+T

电池监控器和监视器, 锂离子, 1节, I2C, USB接口, 2.8V至5.5V电源, TQFN-16

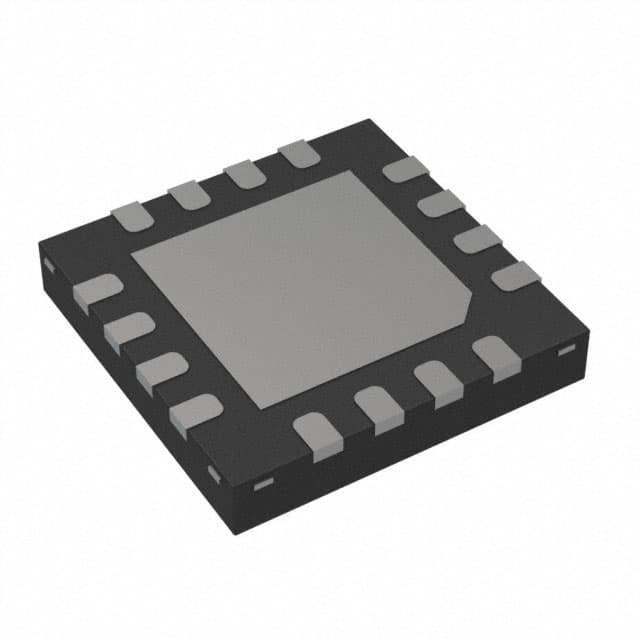

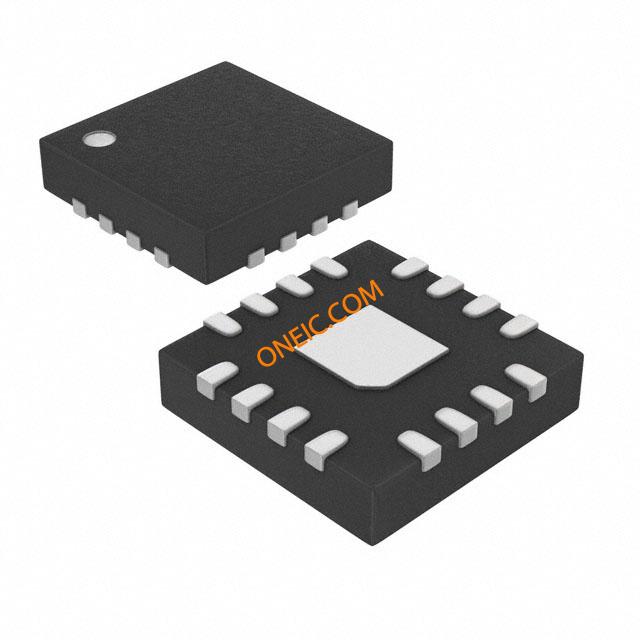

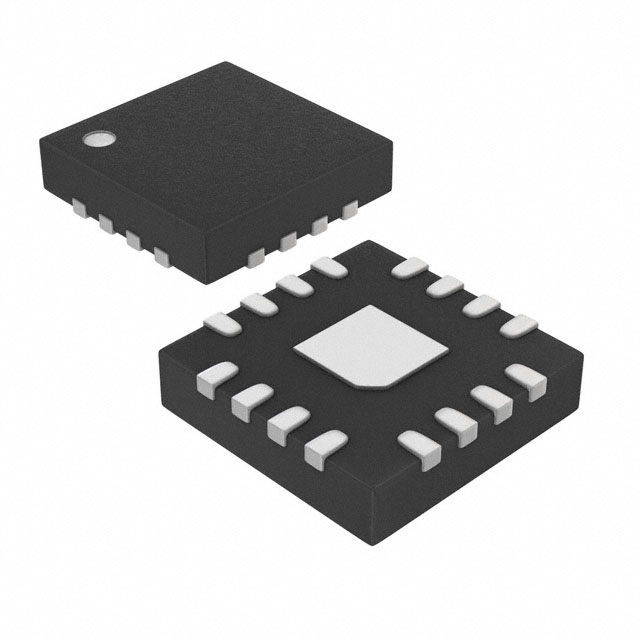

The from Products is an USB battery charger detector in 16 pin TQFN package. The USB charger-detection circuitry detects USB standard downstream ports, USB charging downstream ports or dedicated charger ports and controls an external Li+ battery charger. The device implement USB battery charging revision1.1-compliant detection logic including data contact detection, D+/D- short detection, charging downstream port identification. The internal USB switch is compliant to Hi/full/low-speed USB signals. The device feature low on-resistance, low on-resistance flatness and very low capacitance. The device also features high-ESD protection up to ±15KV human body model on the CD+ and CD- pins. In addition, the device feature Apple and Sony charger detection that allows identification of resistor-divider networks on D+/D-. It is used in DSC and camcorder, media players, cell phones, e-book readers and mobile internet devices MIDs.

.

Supply voltage range is 2.8V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

China YD/T1591 compliant charger detection

.

Internal switches isolate the USB transceiver during the charger detection process

.

VBUS connection capable of 28V

.

Device status change interrupt

.

Low supply current of 1µA at VBAT = +3.6V

.

±8KV IEC 6100-4-2 contact discharge

.

Cell Phones; DSC and Camcorder; e-Book Readers; Media Players; MID Mobile Internet Device
