MIC29300-5.0WU

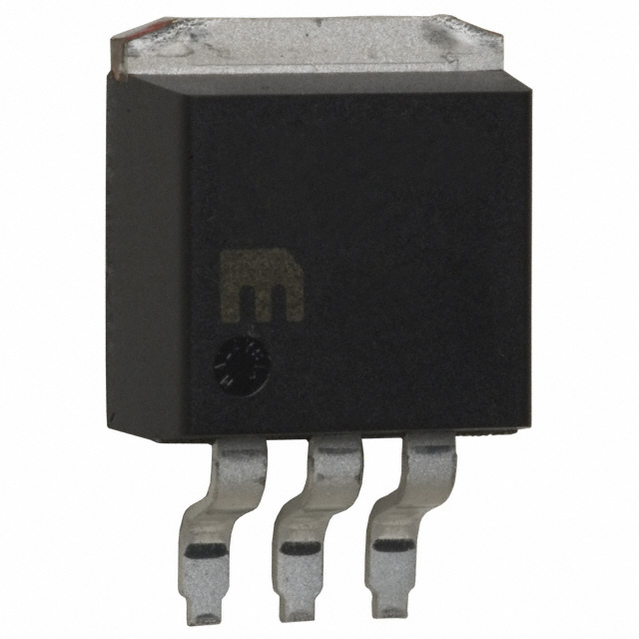

MICREL SEMICONDUCTOR  MIC29300-5.0WU  芯片, 稳压器, LDO, 3A, 5V, TO-263-3

General Description

The MIC29150/29300/29500/29750 are high current, high accuracy, low-dropout voltage regulators. Using "s proprietary Super βeta PNP® process with a PNP pass element, these regulators feature 350mV to 425mV full load typical dropout voltages and very low ground current. Designed for high current loads, these devices also find applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes.

Features

•High current capability

  MIC29150/29151/29152/29153.................................1.5A

  MIC29300/29301/29302/29303....................................3A

  MIC29500/29501/29502/29503....................................5A

  MIC29750/29751/29752............................................7.5A

•Low-dropout voltage

•Low ground current

• Accurate 1% guaranteed tolerance

• Extremely fast transient response

• Reverse-battery and “Load Dump” protection

• Zero-current shutdown mode 5-pin versions

• Error flag signals output out-of-regulation 5-pin versions

• Also characterized for smaller loads with industry leading performance specifications

• Fixed voltage and adjustable versions

Applications

• Battery powered equipment

• High-efficiency “Green” computer systems

• Automotive electronics

• High-efficiency linear lower supplies

• High-efficiency lost-regulator for switching supply
