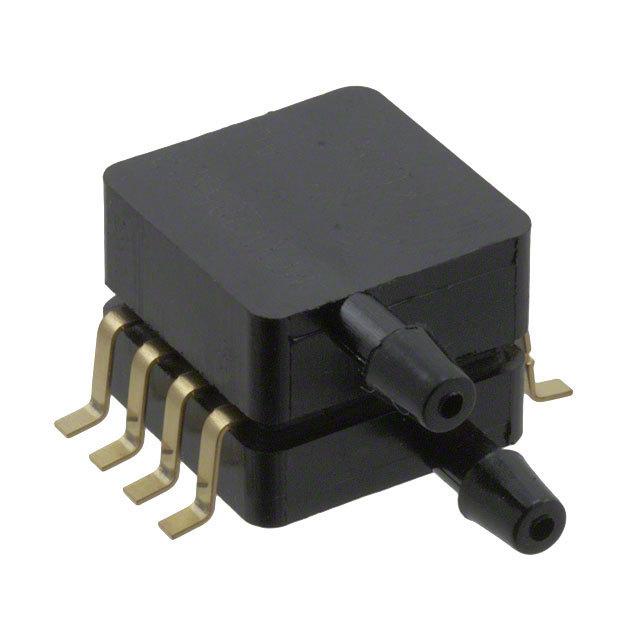

NXP MPXV2053DP 压力传感器, 差分, 0.8 mV/kPa, 0 kPa, 50 kPa, 10 V, 16 V
Overview
The MPX2053/MPXV2053G/MPXM2053 device series offer silicon piezoresistive pressure sensors with highly accurate and linear voltage output directly proportional to the applied pressure.
* Supports applications such as pump/motor control, robotics, level detectors, pressure switching, medical diagnostics, and blood pressure measurement
* Provides a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip
* Enables precise span and offset calibration and temperature compensation
MoreLess
## Features
* Temperature compensated over 0° to +85°C
* Ratiometric to supply voltage
* Available in rails or tape-in-reel shipping options
* Available in differential and gauge configurations
* Gauge-ported and non-ported options
## Features
电源电压DC 10.0V min
无卤素状态 Halogen Free
输出电压 0V ~ 0.04V
供电电流 6.00 mA
针脚数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 10 V
电源电压Max 16 V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 8

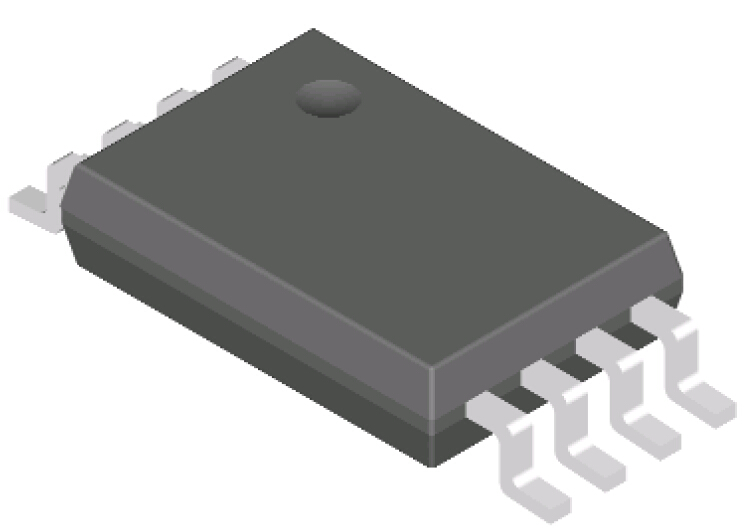

封装 SOP-8
封装 SOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MPXV2053DP NXP 恩智浦 | 当前型号 | 当前型号 |
MP3V5004DP 恩智浦 | 功能相似 | MPXV2053DP和MP3V5004DP的区别 |
