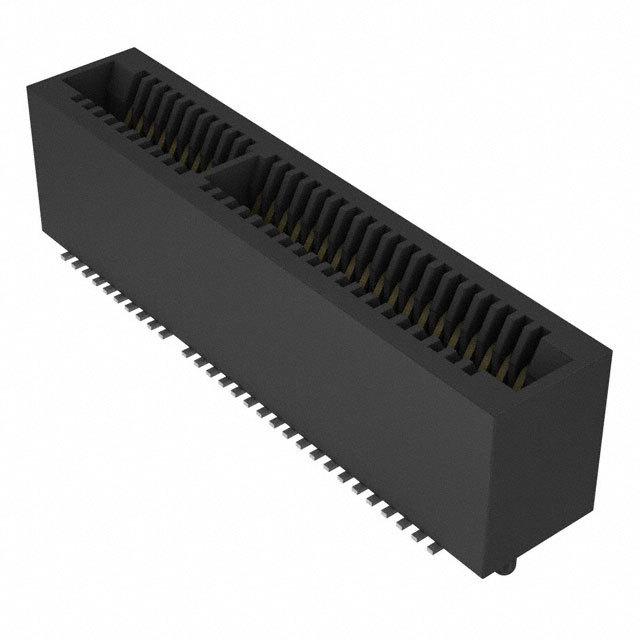

MEC1-130-02-F-D-A

SAMTEC  MEC1-130-02-F-D-A  连接器, 21 & 22引脚极化, MEC1系列, 卡边缘, 58 触点, 插座, 1 mm, 表面安装

60 位置 母头 非指定 - 双边 镀金 0.039"（1.00mm） 黑色

欧时:
DUAL EDGE CONN 60POS 0.039

得捷:
CONN EDGE DUAL FMALE 60POS 0.039

立创商城:
1mm P数:60

e络盟:
卡边连接器, 21 & 22引脚极化, 双侧, 1.57 mm, 60 触芯, 表面安装, 直行, 焊接

艾睿:
Samtec&s;s MEC1-130-02-F-D-A smart card connector eliminates the need for an opposite male connector, as the male edge of a PCB will fit snugly into this connector. This SKT connector&s;s 60 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 1 mm. It has a socket type gender. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. This product is 9.04 mm tall. This device has a maximum current rating of 2.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. MEC1-130-02-F-D-A is housed in black liquid crystal polymer. This card edge connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

Newark:
# SAMTEC  MEC1-130-02-F-D-A  Connector, MEC1 Series, Card Edge, 58 Contacts, Receptacle, 1 mm, Surface Mount
