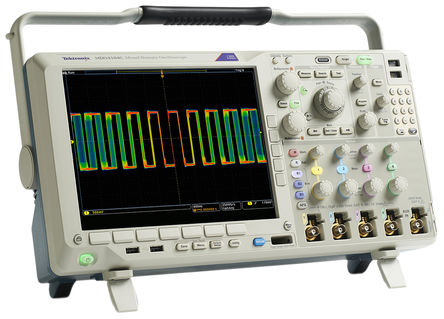

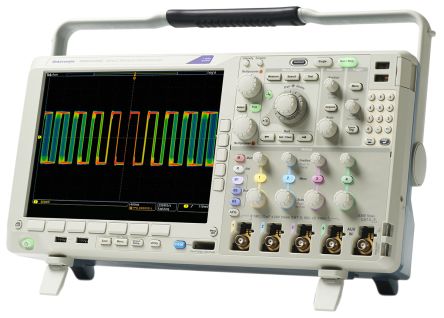

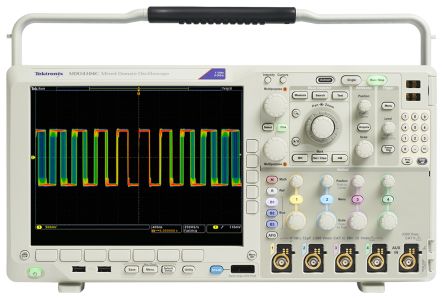

MDO4024C

TEKTRONIX  MDO4024C  示波器, MDO4000C Series, 4x 模拟, 200 MHz, 2.5 GSPS, 1.75 ns

Introducing the 6-in-1 integrated oscilloscope that includes a spectrum analyzer, arbitrary/function generator, logic analyzer, protocol analyzer and DVM / frequency counter. The MDO4000C Series has the performance you need to solve the toughest embedded design challenges quickly and efficiently. When configured with an integrated spectrum analyzer, it is the only instrument that provides simultaneous and synchronized acquisition of analog, digital and spectrum, ideal for incorporating wireless communications IoT and EMI troubleshooting. The MDO4000C is completely customizable and fully upgradeable so you can add the instruments you need now - or later.

.

Wave inspector® waveform navigation & automated search allows you to find events of interest quickly

.

Over 125 trigger combinations providing a complete set of triggers

.

Identify glitches and other infrequent transient signals quickly with more than 340,000 waveform/s

.

Understand events of interest with the color-graded display

.

Synchronized analysis of analog, digital, and RF signals for easy system-level troubleshooting

.

Digital phosphor technology with Fastacq™ High-Speed Waveform Capture

.

Customizable and fully upgradeable

.

9kHz - 3GHz or 9kHz - 6GHz Spectrum Analyzer Option

.

50MHz Function Generator with a 128k Arbitrary Generator Option

.

16 Digital Channel Logic Analyzer Option

.

Serial Bus Protocol Analyzer Option

.

Digital Voltmeter/Frequency Counter Option

.

Digital Voltmeter/Frequency Counter Option

Digital Voltmeter/Frequency Counter option free with product registration
