MMS-132-01-L-DV

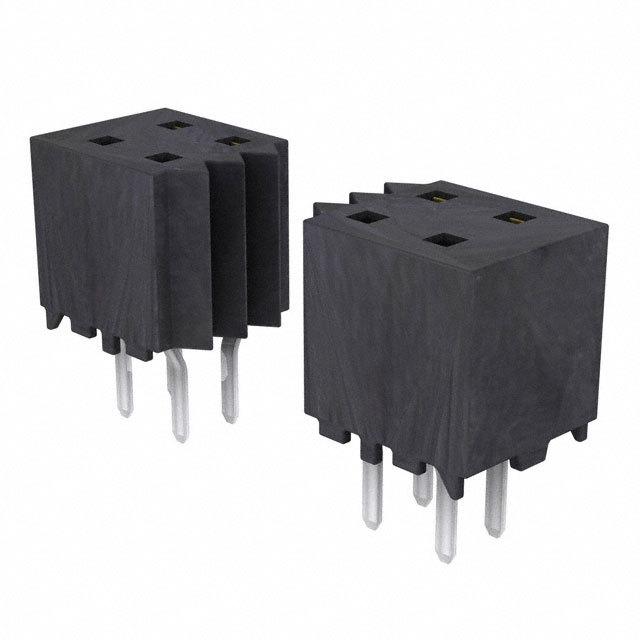

SAMTEC MMS-132-01-L-DV Board-To-Board Connector, 2mm, 64Contacts, Receptacle, MMS Series, Through Hole, 2Rows

64 位置 插座 0.079"（2.00mm） 通孔 镀金

欧时:
CONN RCPT 4POS 0.079 GOLD PCB

得捷:
CONN RCPT 64POS 0.079 GOLD PCB

艾睿:

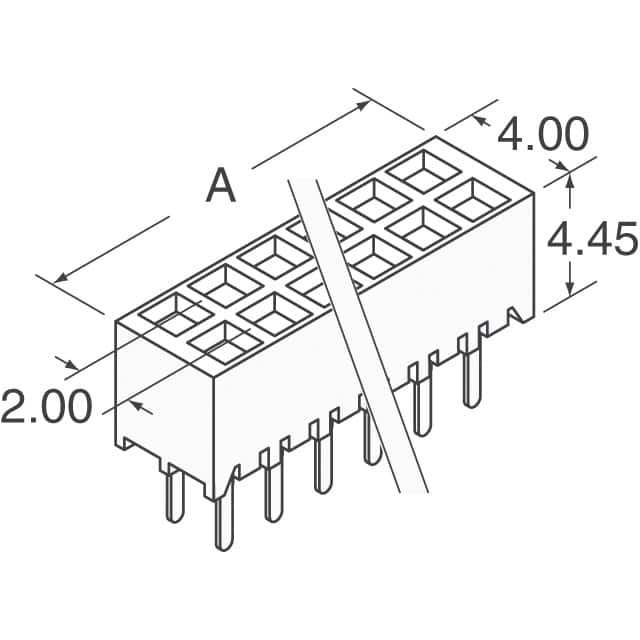

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip MMS-132-01-L-DV header connector from Samtec. This SKT connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. This is a 2-row connector. Its pitch is 2 mm. It has a straight body orientation. This device has a maximum current rating of 3.9 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 64.56 mm long, 4.45 mm tall and 4 mm deep. MMS-132-01-L-DV is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.

Newark:
# SAMTEC  MMS-132-01-L-DV  Board-To-Board Connector, 2 mm, 64 Contacts, Receptacle, MMS Series, Through Hole, 2 Rows
