MMS-122-01-L-DH

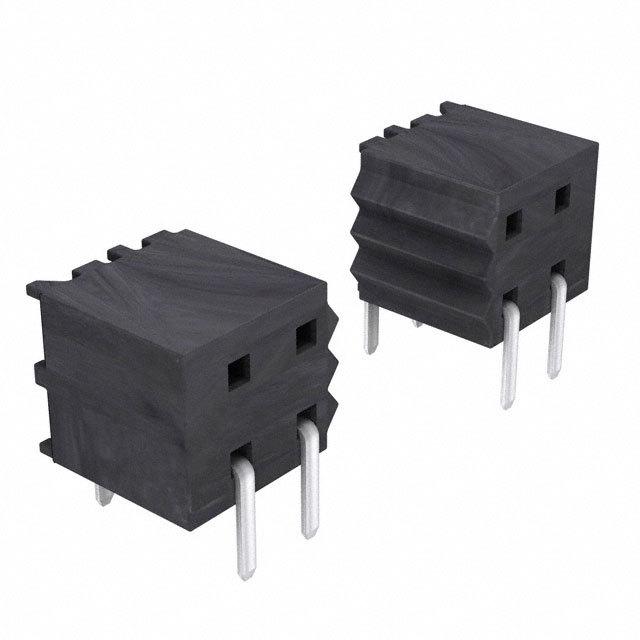

SAMTEC MMS-122-01-L-DH Board-To-Board Connector, 2mm, 44Contacts, Receptacle, MMS Series, Through Hole, 2Rows

44 位置 插座 0.079"（2.00mm） 通孔，直角 镀金

得捷:
CONN RCPT 44P 0.079 GOLD PCB R/A

艾睿:
Mount this socket strip MMS-122-01-L-DH header connector from Samtec on a jumper post on your PCB to support physical configuration options. This SKT connector&s;s 44 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2 mm. It has a right angle body orientation. This is a 2-row connector. It has a socket type gender. This device has a maximum current rating of 3.9 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. MMS-122-01-L-DH is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 44.56 mm long, 4 mm tall and 4.7 mm deep. It uses the solder termination method.

安富利:
Conn Socket Strip SKT 44 POS 2mm Solder RA Thru-Hole Tube

Verical:
Conn Socket Strip SKT 44 POS 2mm Solder RA Side Entry Thru-Hole Tube

Newark:
# SAMTEC  MMS-122-01-L-DH  Board-To-Board Connector, 2 mm, 44 Contacts, Receptacle, MMS Series, Through Hole, 2 Rows

Electro Sonic:
2.00 mm Tiger Claw™ Socket Strip
