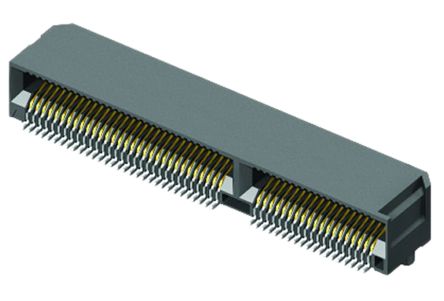

MEC6-120-02-L-D-RA1

Samtec 0.635mm MEC6 系列印刷电路板微型边缘卡插座0.635mm MEC6 系列印刷电路板微型边缘卡插座，带有标准的印刷电路板校准引脚，采用双排设计，可接受多达 140 个镀金触点。 这些 0.635mm MEC6 系列微型边缘卡插座连接器提供印刷电路板垂直安装和印刷电路板直角安装选项，可接受 1.60mm 厚的卡。 0.635mm MEC6 垂直微型边缘卡插座具有 8.65mm 堆叠高度。### 板边连接器 - Samtec

0.635mm MEC6 系列印刷电路板微型边缘卡插座

0.635mm MEC6 系列印刷电路板微型边缘卡插座，带有标准的印刷电路板校准引脚，采用双排设计，可接受多达 140 个镀金触点。 这些 0.635mm MEC6 系列微型边缘卡插座提供印刷电路板垂直安装和印刷电路板直角安装选项，可接受 1.60mm 厚的卡。 0.635mm MEC6 垂直微型边缘卡插座具有 8.65mm 堆叠高度。

立创商城:
0.64mm P数:40

欧时:
Samtec MEC6-RA 系列 0.635mm 节距 2 行 40 路 直角 SMT 母 边缘连接器 MEC6-120-02-L-D-RA1

得捷:
CONN EDGE DUAL FMALE 40POS 0.025

艾睿:
Samtec&s;s MEC6-120-02-L-D-RA1 smart card connector eliminates the need for an opposite male connector, as the male edge of a PCB will fit snugly into this connector. This SKT connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 195 VAC. It has a right angle body orientation. This is a 2-row connector. Its pitch is 0.635 mm. It has a socket type gender. This device has a maximum current rating of 1.7 A/contact. This product is 5.78 mm tall. The item will be shipped in tray orientation. MEC6-120-02-L-D-RA1 is housed in black liquid crystal polymer. It uses the solder termination method. This card edge connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Card Edge SKT 40 POS 0.635mm Solder RA SMD Tray

Newark:
# SAMTEC  MEC6-120-02-L-D-RA1  Connector, MEC6-RA Series, Card Edge, 40 Contacts, Receptacle, 0.635 mm, Surface Mount
