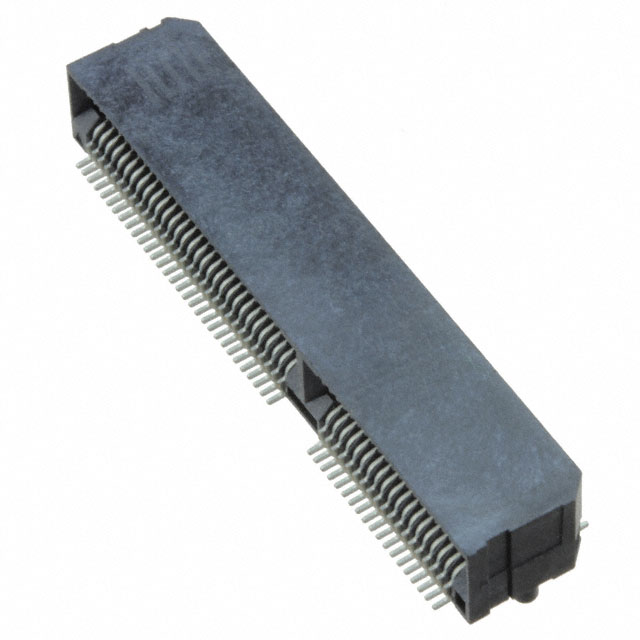

MEC6-150-02-S-D-RA1

0.64mm P数:100

100 位置 母头 非指定 - 双边 镀金 0.025"（0.64mm） 黑色

得捷:
CONN EDGE DUAL FML 100POS 0.025

立创商城:
0.64mm P数:100

艾睿:
Save space for your project by implementing this MEC6-150-02-S-D-RA1 smart card connector from Samtec onto your printed circuit boards. This SKT connector&s;s 100 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.635 mm. This is a 2-row connector. It has a maximum voltage rating of 195 VAC. It has a right angle body orientation. It has a socket type gender. This product is 5.78 mm tall. This device has a maximum current rating of 1.7 A/contact. This card edge connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. MEC6-150-02-S-D-RA1 is housed in black liquid crystal polymer.

安富利:
Conn Card Edge SKT 100 POS 0.635mm Solder RA SMD

Newark:
# SAMTEC  MEC6-150-02-S-D-RA1  Connector, MEC6-RA Series, Card Edge, 100 Contacts, Receptacle, 0.635 mm, Surface Mount
