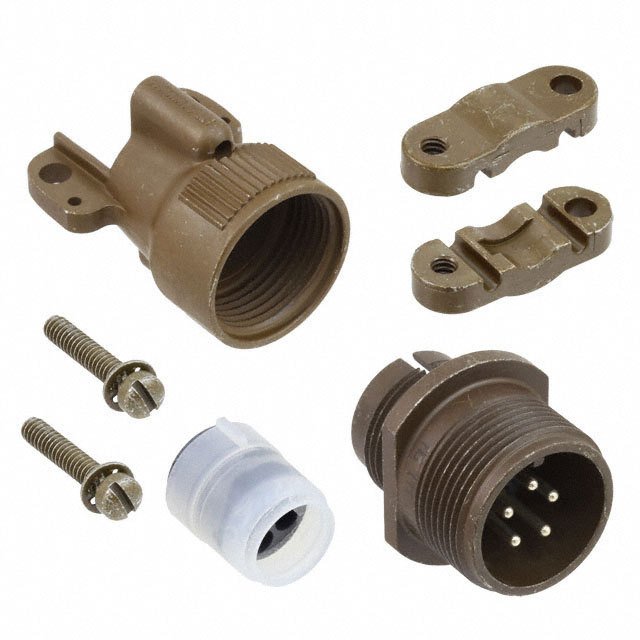

MS3101F14S-5P

Conn Circular PIN 5POS Solder ST Cable Mount 5 Terminal 1Port

The from ITT Cannon is MIL-DTL-5015 series cable mount receptacle with 5 contacts. MIL-DTL-5015 series connectors are available in a wide range of shell materials and finishes with 48 and 500 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability in medium to heavy weight cylindrical construction. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.

.

5 shell styles with 19 shell sizes

.

Single key/keyway shell polarization

.

High reliability, moisture and corrosion resistant

.

500 mating cycles, IP67 environmental protection

.

Operates at extreme temperature range of -55°C to +125°C

.

Minimum insulation resistance is 5000Mohm at 25°C

.

Quick mating, threaded coupling

.

Environmental sealing, low weight and cost effective

.

Aluminium alloy body material with olive drab chromate over cadmium plating

.

Brass, copper alloy solder pin contacts with silver plating
