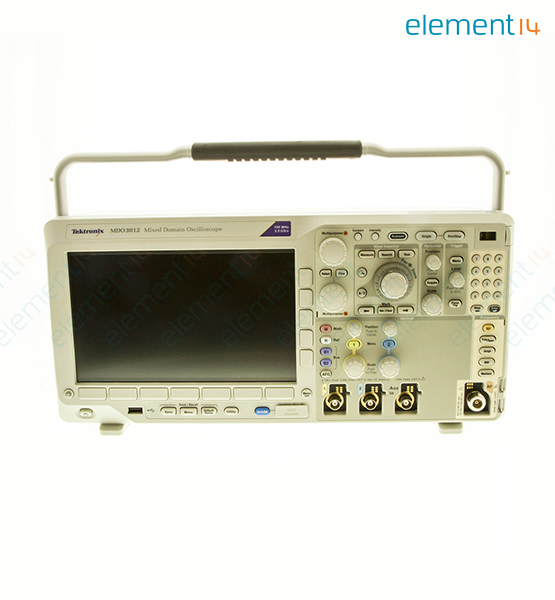

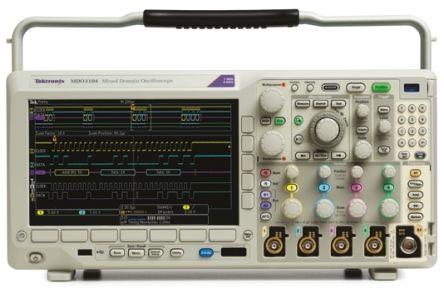

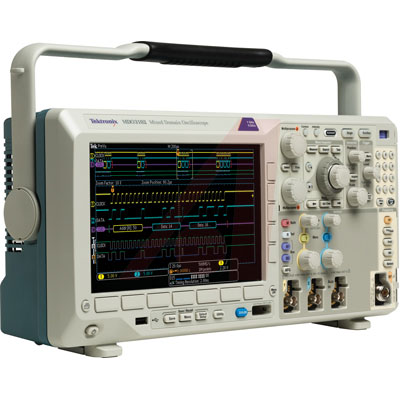

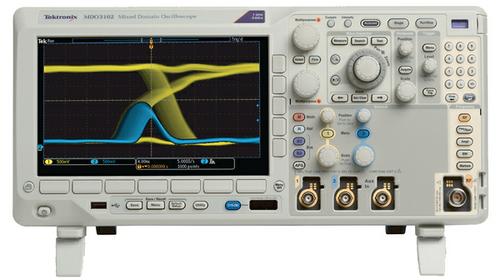

MDO3012

Tektronix 混合域示波器 MDO3000 系列 MDO3000 示波器旨在满足用户现在和未来的需要和愿望。 每种型号均为多功能，集成了基本频谱分析仪、波检测器导航、MSO、串行和并行总线触发和分析以及数字电压表。 可在最初购买示波器时或以后的任何时间购买可选仪器升级和应用模块。 提供以下 MDO3000 仪器升级模块：MDO3AFG 797-3356 注 推荐与 MDO3000 系列示波器一起使用的探头包括：无源 - TPP0250 797-3396 混合域示波器

While the MDO3000 Series Mixed Domain Oscilloscope features other built-in instruments, it is first and foremost an oscilloscope. And a versatile one at that. The is packed with timesaving tools to help you discover, capture, search and analyze problems in your design faster than ever. While you may not know what the future holds, you can rest easy knowing your oscilloscope is ready for it. The MDO3012 is fully upgradeable, giving you the ability to add instruments and upgrade bandwidth as your test needs evolve. It"s the scope you need today that"s ready for tomorrow. They come with a built-in spectrum analyzer, featuring an independent RF acquisition system for the most accurate RF measurements, you can use one instrument as an oscilloscope and spectrum analyzer without compromising on performance.

.

Dedicated front panel controls enable easy zoom and navigation through 10 Mpoint records

.

250,000 waveforms per second acquisition rate

.

Built-in spectrum and protocol analyzer

.

Built in 4-digit voltmeter with AC+DC RMS, AC RMS, and DC measurements

.

Built-in logic analyzer with 16 digital channels

.

Integrated, upgradable arbitrary / function generator

.

Serial and parallel bus triggering and analysis

.

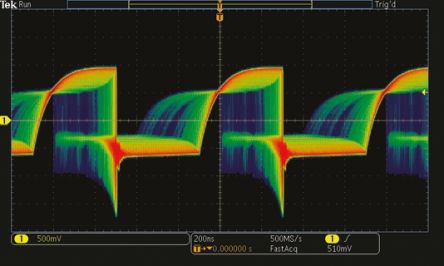

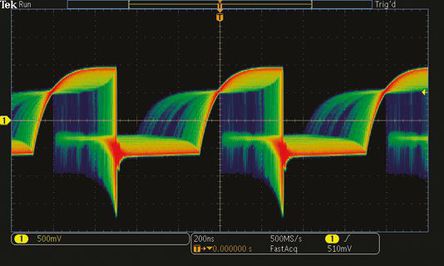

FastAcq™ high-speed waveform capture rate finds elusive signal anomalies quickly

.

Wave Inspector® Controls provide easy navigation and automated search of waveform data

.

33 automated measurements and waveform histograms for simplified waveform analysis

.

Small footprint and lightweight - Only 5.8 in. 147 mm deep and 9.2 lb. 4.2 kg

.

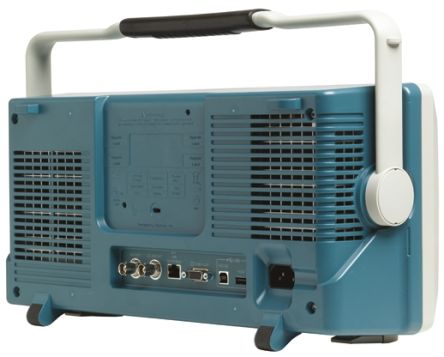

Front and rear USB host ports enable easy transfer of screen shots, settings, and waveform data

.

A video port on the instrument allows the display to be exported to an external monitor or projector
