MICREL SEMICONDUCTOR MIC29310-3.3WT Fixed LDO Voltage Regulator, 2.3V to 16V, 600mV Dropout, 3.3Vout, 3Aout, TO-220-3
The is a 3.3V fixed output fast-response low-dropout LDO Regulator. Using proprietary Super βeta PNP™ process, the device features very low-dropout LDO voltage and low ground current. Along with a total accuracy of ±2% over temperature, line and load regulation these regulators feature very fast transient recovery from input voltage surges and output load current changes. The device is fully protected against overcurrent faults, reversed input polarity, reversed lead insertion and overtemperature operation.
- .
- Accurate 1% guaranteed tolerance
- .
- Fast transient response
输出接口数 1
输入电压DC 16.0V max
输出电压 3.3 V
输出电流 3 A
跌落电压 600 mV
输入电压Max 16 V
输入电压Min 2.3 V
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 ≤16 V
安装方式 Through Hole
引脚数 3

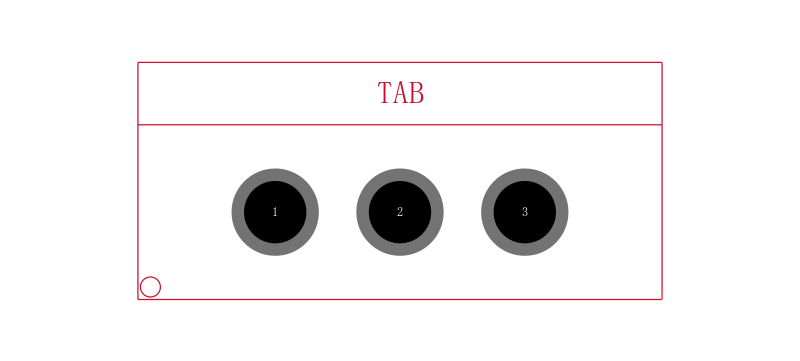

封装 TO-220-3
封装 TO-220-3
工作温度 0℃ ~ 125℃
包装方式 Each
制造应用 Computers & Computer Peripherals, Power Management, Industrial, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MIC29310-3.3WT Micrel 迈瑞 | 当前型号 | 当前型号 |
