MCFE225/30

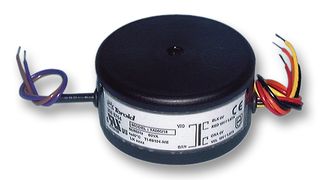

MCFE225/30图片1
MCFE225/30图片2
MCFE225/30图片3
MCFE225/30概述

MULTICOMP  MCFE225/30  变压器, 225VA 2X 30V

The MCFE series are encapsulated toroidal transformers with flying leads. These transformers have a very high quality construction with high efficiency and smaller size compared to conventional EI transformers. MCFE series features a single primary winding rated at 230V 50/60Hz and dual secondary windings. Secondary windings can be connected in series or parallel or used independently.

.
Power rating ranges from 15VA to 500VA
.
Maximum ambient temperature of 40°C
.
Efficiency up to 95%
.
Secondary voltages ranges from 2 x 6VAC to 2 x 40VAC
.
Extremely low radiated magnetic field, suitable for sensitive electronics
.
Double insulated primary leads
.
Flexible lead outs can be trimmed to any length without the need of enamel removal
.
Fully resin encapsulated in case
.
Designed, tested and manufactured in accordance with EN60742, EN60065 and EN60950
.
100% electrical and flash tested
MCFE225/30中文资料参数规格
技术参数

额定电流 3.75 A

额定功率 225 VA

输出电压 30.0 V

封装参数

安装方式 Chassis

物理参数

重量 2.50 kg

符合标准

RoHS标准 RoHS Compliant

REACH SVHC版本 2016/06/20

数据手册

在线购买MCFE225/30
型号: MCFE225/30
制造商: Multicomp
描述:MULTICOMP  MCFE225/30  变压器, 225VA 2X 30V
替代型号MCFE225/30
型号/品牌 代替类型 替代型号对比

MCFE225/30

Multicomp

当前型号

当前型号

VTX-146-225-225

Vigortronix

类似代替

MCFE225/30和VTX-146-225-225的区别

VTX-146-225-230

Vigortronix

类似代替

MCFE225/30和VTX-146-225-230的区别
