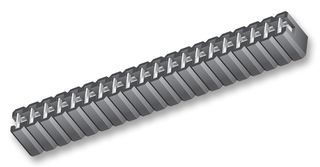

Connector Shunt F 8POS 2.54mm ST
The MNT series multi-position Shunt mates with 0.1-inch TSW, HTSW, MTSW, HMTSW, TLW, DW, EW, ZW, HW, TSM, BST and PHT terminal strips.
欧时:
2.54mm MNT series open top shunt, 4P
得捷:
.100 C.L. SHUNT STRIP
艾睿:
Easily optimize components within your circuit by running components in parallel and series using the MNT-104-BK-T connector from Samtec. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 450 VAC. It has a female type gender. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 3.9 A/contact. MNT-104-BK-T is housed in black polyester. This product is 10.16 mm long, 6.1 mm tall and 5.08 mm deep. This terminal block jumper has an operating temperature of -40 to 90 °C.
Newark:
# SAMTEC MNT-104-BK-T Jumper Busbar, Shunt, Shunt, TSW, MTSW, TLW, DW, EW, ZW, HW, & TSM Series Headers, 4 Positions
