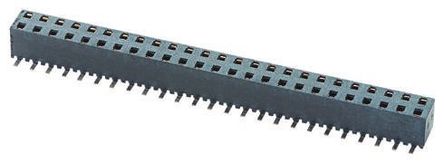

MMS-120-02-L-DV

2.0mm Samtec Range

MMS 系列盒板

盒插座，带垂直双排

磷青铜触点，其表面 0.25μm 镀金

额定电流：2A（80°C 环境下）

触点电阻：最大 10mΩ

工作温度范围：-55°C 至 125°C

欧时:
Samtec MMS 系列 2行 40路 直向 2mm节距 表面贴装 印刷电路板插座 MMS-120-02-L-DV, 焊接端接

得捷:
CONN RCPT 40POS 0.079 GOLD SMD

e络盟:
板至板连接, 2 mm, 40 触点, 插座, MMS Series, 表面安装　, 2 排

艾睿:
Support physical configuration options for jumper posts by mounting this socket strip MMS-120-02-L-DV header connector from Samtec. This SKT connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 2 mm. This device has a maximum current rating of 3.9 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 40.56 mm long, 4.5 mm tall and 6.44 mm deep. MMS-120-02-L-DV is housed in black liquid crystal polymer.

安富利:
Conn Socket Strip SKT 40 POS 2mm Solder ST SMD Tube

Newark:
# SAMTEC  MMS-120-02-L-DV  Board-To-Board Connector, 2 mm, 40 Contacts, Receptacle, MMS Series, Surface Mount, 2 Rows
