压力传感器, 差分, 45 mV/kPa, 15 kPa, 115 kPa, 4.75 V, 5.25 V
Overview

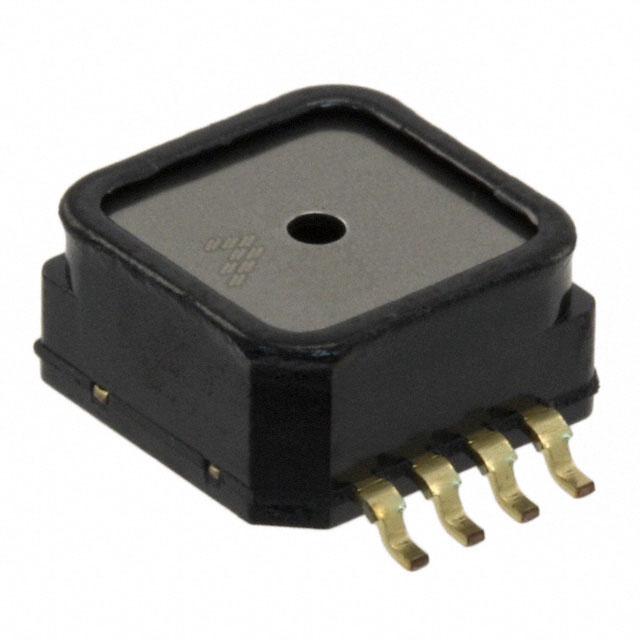

The ® MPxx6115 is a state-of-the-art, monolithic, signal conditioned silicon pressure sensor.
* Integrates on-chip bipolar op-amp circuitry and thin-film resistor networks to provide a high-output signal and temperature compensation
* Combines advanced micromachining techniques, thin-film metallization and bipolar semiconductor processing to provide an accurate high-level analog output signal that is proportional to applied pressure.
* Small form factor and high reliability of on-chip integration make the MPxx6115 pressure sensor a logical and economical choice for the system designer
MoreLess
## Features
* Improved accuracy at high-temperature
* Durable thermoplastic PPS surface mount package
* Temperature compensated from -40° to +125°C
* Ideally suited for microprocessor or microcontroller-based systems
* 1.5 percent maximum error over 0° to 85°C
* Resistant to high humidity and common automotive media
* Available in small and super small outline packages
## Features
电源电压DC 4.75V min
额定电压DC 5.00 V
无卤素状态 Not Halogen Free
输出电压 0.2V ~ 4.8V
供电电流 6.00 mA
针脚数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 8
封装 SSOP-8
封装 SSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 传感与仪器, 计算机和计算机周边, 车用, 便携式器材, 无线, 板式安装
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MPXHZ6115A6U NXP 恩智浦 | 当前型号 | 当前型号 |
MPXHZ6115A6T1 恩智浦 | 完全替代 | MPXHZ6115A6U和MPXHZ6115A6T1的区别 |
