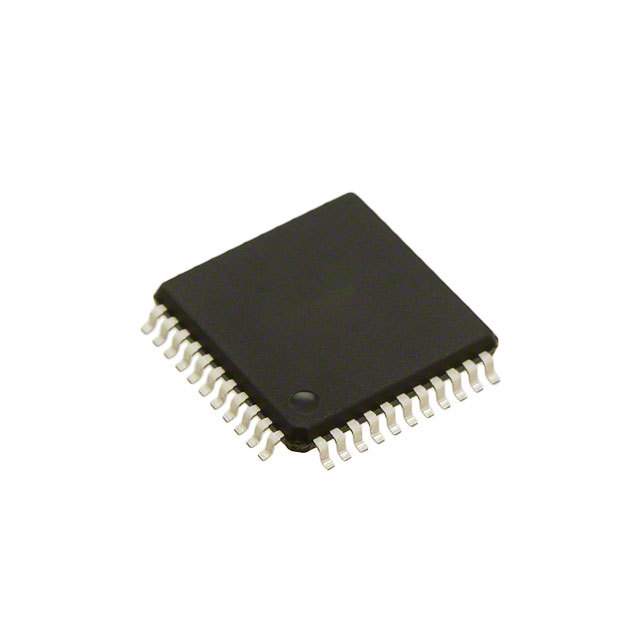

NXP MC9S08PT16AVLD 微控制器, 8位, EEPROM含TSI, MC9S08, 20 MHz, 16 KB, 2 KB, 44 引脚, LQFP
The is a 8-bit Microcontroller based on enhanced S08 CPU 20MHz bus with CISC architecture operates at a maximum frequency of 20MHz. The device incorporates 16kB internal flash, 2kB internal RAM, 256byte EEPROM, 12-channel 12-bit A/D converter and 37 general-purpose I/O pins. This device also features peripherals like one inter-integrated circuit IIC bus module to operate at up to 100kbps and one serial peripheral interface modules SPI.
-
.
-
Supporting up to 40 interrupt/reset sources
-
.
-
Supporting up to 4-level nested interrupt
-
.
-
Flash and RAM access protection
-
.
-
One low-power stop mode; reduced power wait mode
-
.
-
Peripheral clock enable register can disable clocks to unused modules
-
.
-
Loop-controlled pierce oscillator XOSC
-
.
-
Internal clock source ICS - Containing a frequency-locked-loop FLL
-
.
-
Watchdog with independent clock source
-
.
-
Low-voltage detection with reset or interrupt - selectable trip points
-
.
-
Illegal opcode detection with reset
-
.
-
Illegal address detection with reset
-
.
-
Single-wire background debug interface
-
.
-
Breakpoint capability to allow three breakpoints setting during in-circuit debugging
-
.
-
On-chip in-circuit emulator ICE debug module
-
.
-
One analog comparator with both positive and negative inputs
-
.
-
Programmable cyclic redundancy check module CRC
-
.
-
3 x Flex timer modulators modules
-
.
-
2 x Modulo timer with 8-bit prescaler and overflow interrupt
-
.
-
TSI - Supporting up to 16 external electrodes
-
.
-
2 x 8-bit Keyboard interrupt module KBI
