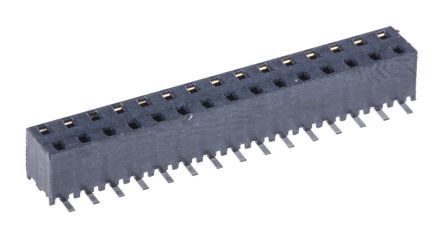

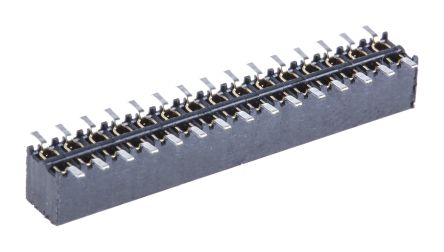

MMS-115-02-L-DV

MMS 系列盒插座板盒插座，带垂直双排 磷青铜触点，其表面 0.25μm 镀金 额定电流：2A（80°C 环境下） 触点电阻：最大 10mΩ 工作温度范围：-55°C 至 125°C ### 2.0mm Samtec Range

MMS 系列盒板

盒插座，带垂直双排

磷青铜触点，其表面 0.25μm 镀金

额定电流：2A（80°C 环境下）

触点电阻：最大 10mΩ

工作温度范围：-55°C 至 125°C

欧时:
Samtec MMS 系列 2行 30路 直向 2mm节距 表面贴装 印刷电路板插座 MMS-115-02-L-DV, 焊接端接

得捷:
CONN RCPT 30POS 0.079 GOLD SMD

艾睿:

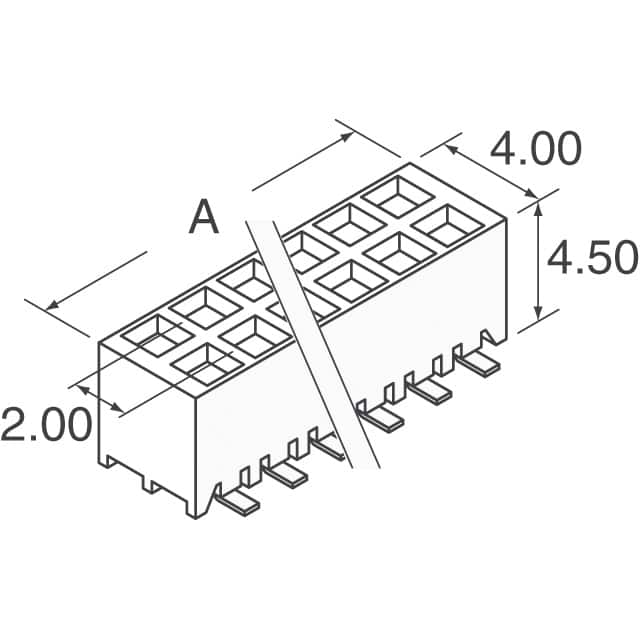

Mounting this socket strip MMS-115-02-L-DV header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This SKT connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2 mm. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 3.9 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. MMS-115-02-L-DV is housed in black liquid crystal polymer. This product is 30.56 mm long, 4.5 mm tall and 6.44 mm deep. It uses the solder termination method.

Newark:
# SAMTEC  MMS-115-02-L-DV  Board-To-Board Connector, 2 mm, 30 Contacts, Receptacle, MMS Series, Surface Mount, 2 Rows
