MICROCHIP MA330025-3 插入式模块, 电机控制, DSPIC33EP512MU814

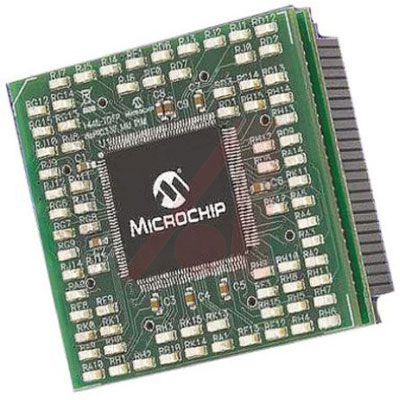

The is a dsPIC33EP512MU814 motor control PIM. This plug-in module comes with a 144-pin dsPIC33EP512MU814-I/PT device. It is intended to be used to control the MCHV DM330023, MCLV DM330021, or MCSM DM330022 motor control development boards. These dsPIC33E devices contain a peripheral pin select PPS feature that allows most of the Digital peripherals to be remapped to use any number of pins on the device. Because the dsPIC33EP512MU814 device has 144-pins and the PIM socket only routes 100 pins down to the explorer 16 board, 75 I/O pins are additionally routed to test points on top of the PIM PC board. Designers can utilized the PPS feature with these I/O pins to customize the functionality of the PIM.
内核架构 dsPIC
内核子架构 dsPIC33
封装 Module
封装 Module
产品生命周期 Unknown
包装方式 Bulk
制造应用 Motor Drive & Control, 音频, 车用, Sensing & Instrumentation, Consumer Electronics, 电机驱动与控制, 建筑自动化, Building Automation, 工业, 通信与网络, Audio, Communications & Networking, Industrial, Automotive, 消费电子产品, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 3A991.a.2
