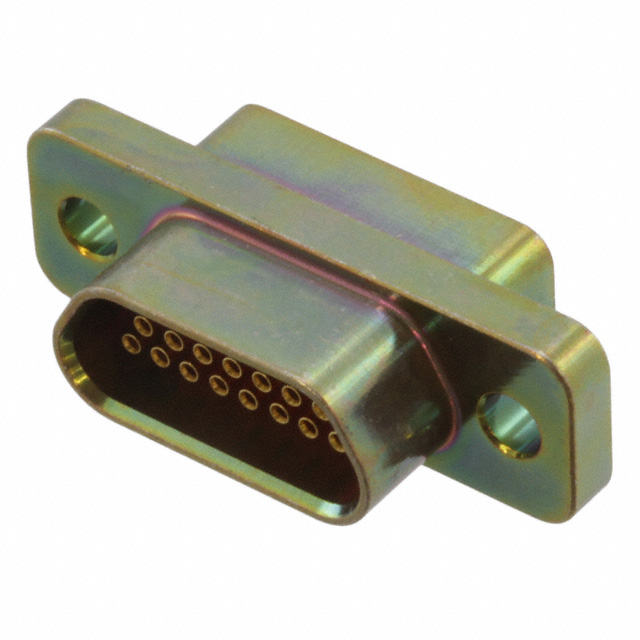

M83513/02-BC

Conn D-Subminiature SKT 15POS 1.27mm Solder Pot ST Panel Mount 15 Terminal 1Port

The M83513 series Micro Metal Shell D-sub Connectors with 0.05-inch contact spacing. These are used in applications requiring highly reliable, extremely small, lightweight connectors with higher density contact configurations than available in traditional rectangular connectors. They are available in 8 shell sizes accommodating from 9 to 100 contacts and special arrangements of power and coaxial contacts. These connectors are designed to meet the rapidly increasing demands for an environmental, high performance, rugged, moisture-sealed microminiature connector.

.

Aluminium shells to provide greater strength, prevent chipping, cracking or breaking

.

Offer electromagnetic EMI and RFI shielding

.

Contact termination-multiple indent crimp

.

Contact retention -fixed via epoxy

.

3A Current rating maximum
