MMS-110-02-L-SH

Conn Socket Strip SKT 10POS 2mm Solder RA SMD Tube

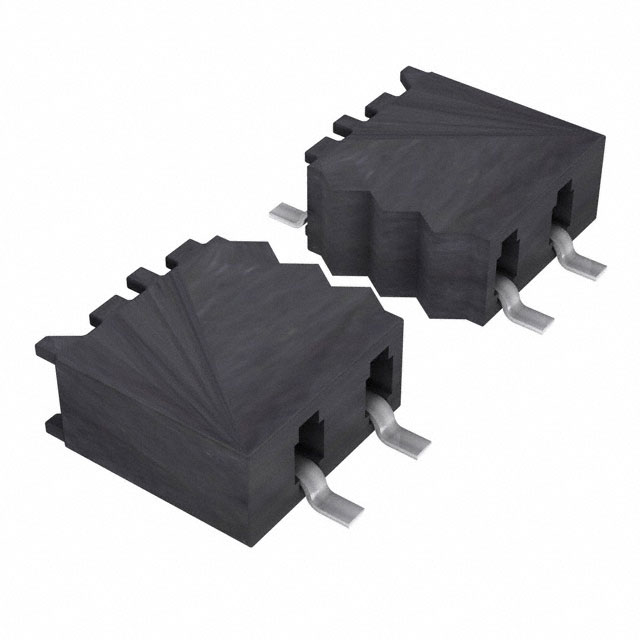

The MMS series from are Tiger Claw socket strips. These are surface mount socket strips mates with Samtec TMMH, TMM, MTMM, MMT, TW, LTMM, ZLTMM, TCMD and TSH series connectors.

.

Pitch spacing is 2mm 2 to 40 contacts per row

.

Single row horizontal mounting socket strip

.

High operating temperature range of -55°C to 125°C for 10µ" gold plated contacts

.

Black liquid crystal polymer insulator material

.

Contact material is phosphor bronze

.

Contact resistance is 10mohm

.

Tiger Claw contact system

.

Complies with UL E111594 and CSA 090871_0_000 standards
