MC34910G5AC

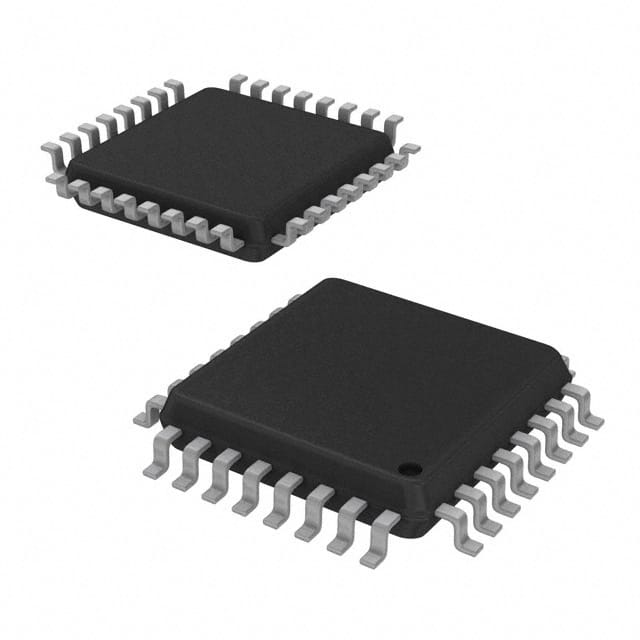

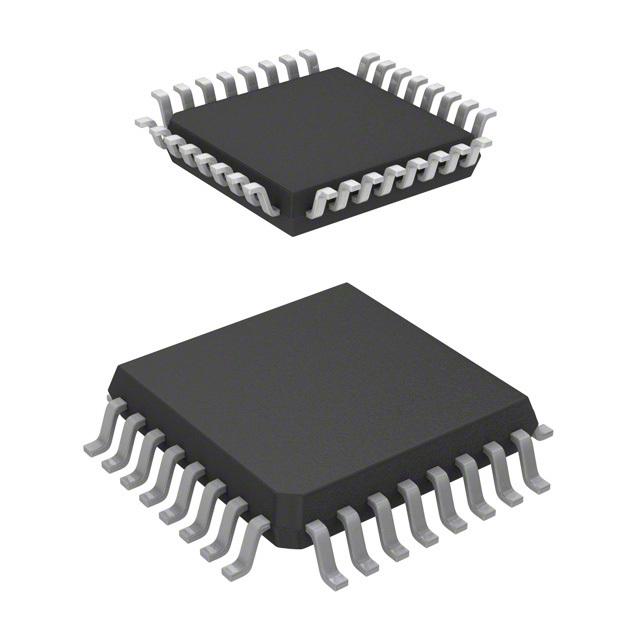

NXP  MC34910G5AC  芯片, LIN网络系统收发器, 100KBPS LQFP-32

Overview

The ® MC33910 is a SPI-controlled System Basis Chip SBC that combines many frequently used functions in an MCU-based system, plus a LIN transceiver.

* 5.0 V, 50 mA low dropout regulator with full protection and reporting features

* Full SPI-readable diagnostic and a selectable timing watchdog for detecting errant operation

* The LIN Protocol Specification, version 2.0 and 2.1 G5AC compliant LIN transceiver has waveshaping circuitry that can be disabled for higher data rates

* Two 60 mA high side switches with optional pulse-width modulation PWM are implemented to drive small loads

MoreLess

## Features

* Two 60 mA high side switches

* One high voltage analog/logic input

* Full-duplex SPI at frequencies up to 4 MHz

* LIN transceiver capable of up to 100 kbps with wave shaping

* Configurable window watchdog

* 5.0 V low drop regulator with fault detection and low voltage reset LVR circuitry

* Switched/protected 5.0 V output used for Hall sensors

* IEC61000-4-2 ESD performance on LIN and Wake up inputs "G5AC

* EMC immunity against RF disturbance and Transient and Conducted Emissions "G5AC

* This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch
