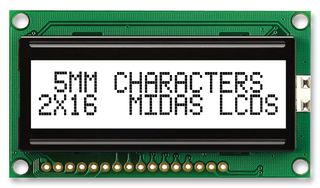

MC21605H6W-FPTLW

MIDAS  MC21605H6W-FPTLW  字母数字液晶屏, 16 x 2, 白色底黑色字, 5 V, 并行, 英式, 日式, 半透反射

* Alphanumeric / character LCD module

.

2 lines of 16 characters - 2 x 16 also referred to as 16 x 2

.

Positive mode FSTN material

.

Appearance - black characters on white background

.

Transflective technology, generally for indoor and outdoor applications

.

Chip on board construction COB for easy mounting

.

On board controller SPLC780 or equivalent HD44780 derivative

.

English/Japanese font sets

.

5V logic supply, standard parallel interface

.

Display duty 1/16, Driving bias 1/5

.

White LED backlight

.

Preferred view angle - 6 o"clock

.

-20 to +70°C wide operating temperature range

.

16 way through hole SIL bottom, left connection, 2.54mm pitch

.

Overall max dimensions - 65.5 x 36.7 x 13.5mm

.

Viewing area - 54.0 x 14.4mm

.

5mm character actual dimension 2.55 x 4.99mm
