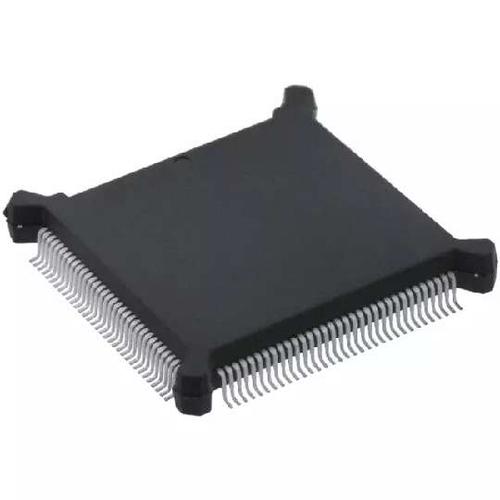

MC68332GCEH16

MCU 32Bit 68K/M683xx ColdFire RISC ROMLess 5V 132Pin PQFP Tray

The is a highly-integrated 32-bit Modular Microcontroller combines high-performance data manipulation capabilities with powerful peripheral subsystems. The MCU is built up from standard modules that interface through a common intermodule bus IMB. Standardization facilitates rapid development of devices tailored for specific applications. The MCU incorporates a 32-bit CPU CPU32, a system integration module SIM, a time processor unit TPU, a queued serial module QSM and a 2kB static RAM module with TPU emulation capability TPURAM. The MCU can either synthesize an internal clock signal from an external reference or use an external clock input directly. Operation with a 32.768kHz reference frequency is standard. The maximum system clock speed is 20.97MHz. System hardware and software allow changes in clock rate during operation.

.

Central processing unit CPU32

.

32-bit Architecture

.

Virtual memory implementation

.

Table lookup and interpolate instruction

.

High-level language support

.

Background debugging mode

.

Fully static operation

.

System integration module SIM

.

External bus support

.

Programmable chip-select outputs

.

System protection logic

.

Watchdog timer, clock monitor and bus monitor

.

Two 8-bit dual function Input/output ports

.

7-bit Dual function output port

.

Phase-locked loop PLL clock system

.

Dedicated micro engine operating independently of CPU32

.

16 Independent programmable channels and pins

.

Any channel can perform any time function

.

Two timer count registers with programmable prescalers

.

Selectable channel priority levels
