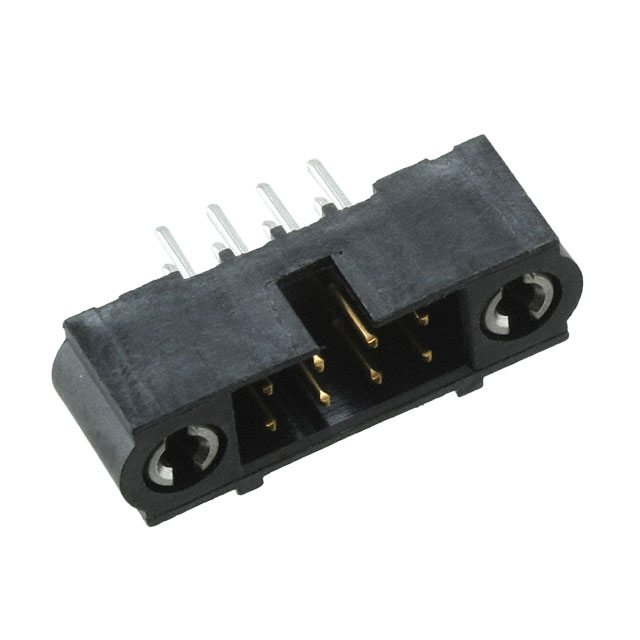

HARWIN M80-5T10842MC Wire-To-Board Connector, 2mm, 8Contacts, Header, Datamate Mix-Tek M80 Series, Through Hole
Connector Header Through Hole 8 position 0.079" 2.00mm
得捷:
CONN HEADER VERT 8POS 2MM
安富利:
Datamate J-Tek DIL Male Vertical 3mm PC Tail Connector, selective gold + tin, retainers for 101Lok, 4+4 contacts
Chip1Stop:
Conn Datamate M 8 POS 2mm Solder ST Thru-Hole Tube
Newark:
# HARWIN M80-5T10842MC Wire-To-Board Connector, 2 mm, 8 Contacts, Header, Datamate Mix-Tek M80 Series, Through Hole
触点数 8
极性 Male
触点电镀 Gold
额定电流 2.2A/触头
绝缘电阻 100 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 8
接触电阻 25 mΩ
工作温度Max 121 ℃
工作温度Min -55 ℃
额定电压 120 V
安装方式 Through Hole
长度 18 mm
宽度 6.05 mm
高度 5.6 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 121℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
M80-5T10842MC Harwin | 当前型号 | 当前型号 |
M80-5T10822MC Harwin | 完全替代 | M80-5T10842MC和M80-5T10822MC的区别 |
