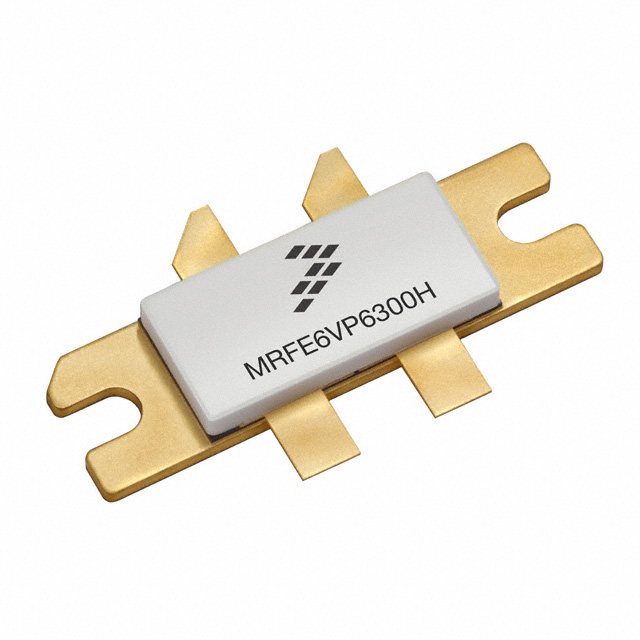

晶体管, 射频FET, 130 VDC, 1.05 kW, 1.8 MHz, 600 MHz, NI-780
Overview
The MRFE6VP6300HR3 and MRFE6VP6300HSR3 are high ruggedness devices, designed for use in high VSWR industrial including laser and plasma exciters, broadcast analog and digital, aerospace and radio/land mobile applications. They are unmatched input and output designs allowing wide frequency range utilization, between 1.8 and 600 MHz.
MoreLess
## Features
* Unmatched Input and Output Allowing Wide Frequency Range Utilization
* Device can be used Single-Ended or in a Push-Pull Configuration
* Qualified Up to a Maximum of 50 VDD Operation
* Characterized from 30 V to 50 V for Extended Power Range
* Suitable for Linear Application with Appropriate Biasing
* Integrated ESD Protection
* Greater Negative Gate-Source Voltage Range for Improved Class C Operation
* Characterized with Series Equivalent Large-Signal Impedance Parameters
* RoHS Compliant
* NI-780-4 in Tape and Reel. R3 Suffix = 250 Units, 56 mm Tape Width, 13 inch Reel.
* NI-780S-4 in Tape and Reel. R3 Suffix = 250 Units, 32 mm Tape Width, 13 inch Reel.
* These products are included in Our product longevity program with assured supply for a minimum of 15 years after launch.
## Features RF Performance Table
### 130, 230 MHz Broadband
Typical Performance: VDD = 50 Volts, IDQ = 100 mA\---|---|---|---|---|---
Pulse 100 µsec,
20% Duty Cycle | 300 Peak| 230| 26.5| 74.0| –16
CW| 300 Avg.| 130| 25.0| 80.0| –15
* Capable of Handling a Load Mismatch of 65:1 VSWR, @ 50 Vdc, 230 MHz, at all Phase Angles
* 300 Watts CW Output Power
* 300 Watts Pulse Peak Power, 20% Duty Cycle, 100 µsec
* Capable of 300 Watts CW Operation
频率 230 MHz
无卤素状态 Halogen Free
针脚数 4
耗散功率 300 W
漏源极电压Vds 125 V
输出功率 300 W
增益 26.5 dB
测试电流 100 mA
输入电容Ciss 188pF @50VVds
工作温度Max 225 ℃
工作温度Min -65 ℃
耗散功率Max 1050000 mW
额定电压 130 V
电源电压 50 V
安装方式 Surface Mount
引脚数 4
封装 NI-780-4
封装 NI-780-4
工作温度 -65℃ ~ 225℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MRFE6VP6300HR5 NXP 恩智浦 | 当前型号 | 当前型号 |
MRFE6VP6300HR3 恩智浦 | 功能相似 | MRFE6VP6300HR5和MRFE6VP6300HR3的区别 |
