MPXV5100GP

压力传感器, 计量器, 45 mV/kPa, 0 kPa, 100 kPa, 4.75 V, 5.25 V

Overview

The MPXV5100 series piezoresistive transducer provides a state-of-the-art monolithic silicon pressure sensor designed for a wide range of medical and industrial applications, including patient monitoring, process and pump/motor controls, and pressure switching.

* Combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high-level analog output signal, proportional to the applied pressure

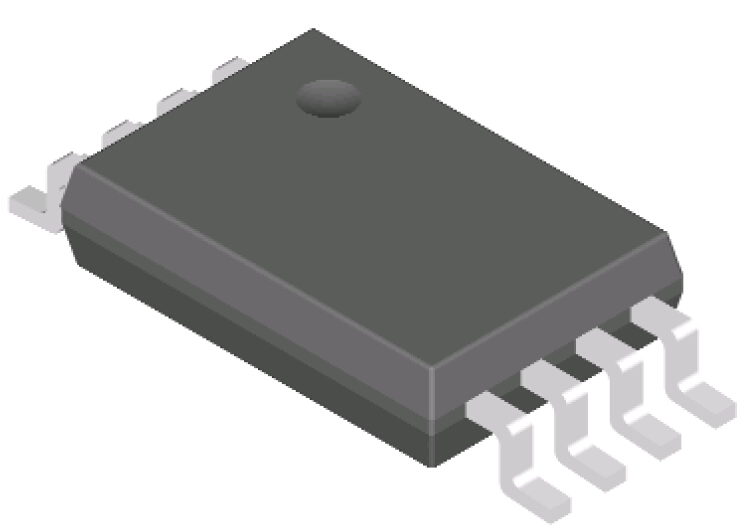

* Delivers a patented, single-element transducer in the small outline package SOP

* Easy-to-use chip carrier option

MoreLess

## Features

* 2.5% Maximum Error Over 0° to 85°C

* Ideally suited for Microprocessor or Microcontroller-based systems

* Patented Silicon Shear Stress Strain Gauge

* Available in Gauge and upon request, Absolute and Differential

* Ideal for Automotive and Non-Automotive applications
