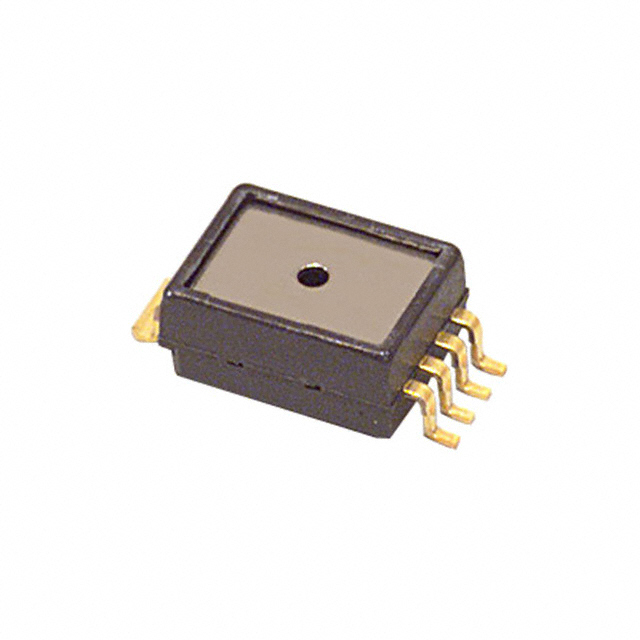

MPXM2102AST1

Pressure Sensor 0V to 0.04V 20kPa to 100kPa Absolute 5Pin4+Tab M-PAC T/R

Overview

The MPX2102/MPXV2102G/MPXM2102 series of pressure sensors provide silicon piezoresistive devices for medical and industrial applications.

* Offers a highly accurate and linear voltage output directly proportional to the applied pressure

* Includes a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip

* Delivers a laser-trimmed chip for precise span, offset calibration and temperature compensation

MoreLess

## Features

* Temperature compensated over 0° to +85°C

* Easy-to-use chip carrier package options

* Available in absolute, differential and gauge configurations

* Ratiometric to supply voltage
