压力传感器, 计量器, 0.4 mV/kPa, 0 kPa, 100 kPa, 10 V, 16 V
Overview
The MPX2102/MPXV2102G/MPXM2102 series of pressure sensors provide silicon piezoresistive devices for medical and industrial applications.
* Offers a highly accurate and linear voltage output directly proportional to the applied pressure
* Includes a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip
* Delivers a laser-trimmed chip for precise span, offset calibration and temperature compensation
MoreLess
## Features
* Temperature compensated over 0° to +85°C
* Easy-to-use chip carrier package options
* Available in absolute, differential and gauge configurations
* Ratiometric to supply voltage
## Features
电源电压DC 10.0V min
额定电压DC 10.0 V
无卤素状态 Halogen Free
输出电压 0V ~ 0.04V
供电电流 6.00 mA
针脚数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 10 V
电源电压Max 16 V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 8
封装 SOP-8
封装 SOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|

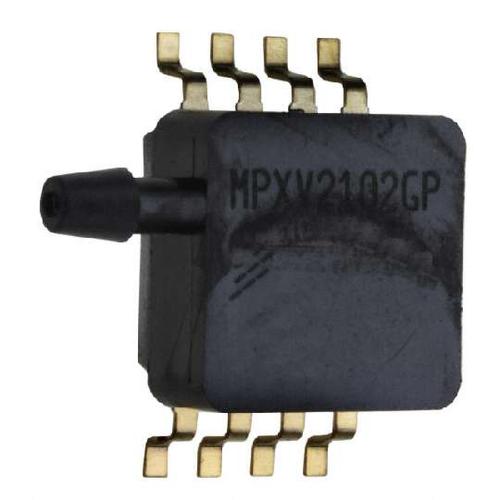

MPXV2102GP NXP 恩智浦 | 当前型号 | 当前型号 |
