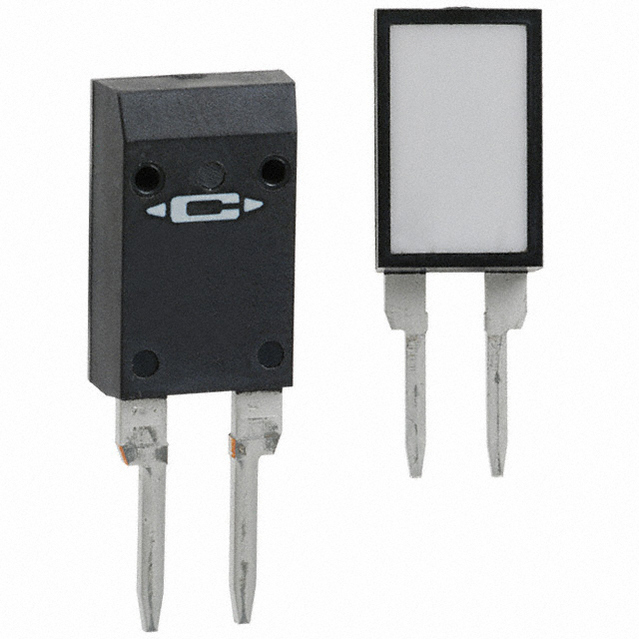

MP2060-5.00-1%

5Ω ±1% 60W -20/+80ppm/℃

**Specifications

**

* Thermal Resistance Rφj-c: 0.020 Ohms and Above: 2.08°C/W; 0.010 Ohm: 3.47°C/W; 0.005 Ohm: 6.94°C/W**

**

* Voltage Rating: 250 VRMS AC**

**

* Non-Inductive Design**

**

* DWV: 1500 VRMS AC, the Resistor Element Is Isolated from the Mounting Surface**

Temperature Coefficient:

**ΔR taken at +150°C ref. to +25°C**

**0.50 ohm to 1.00K ohm: –20 to +80 ppm/°C**

**0.050 ohm to 0.49 ohm: 0 to +100 ppm/°C**

**0.015 ohm to 0.049 ohm: 0 to +200 ppm/°C**

**0.005 ohm to 0.014 ohm: 0 to +300 ppm/°C**

Measurement Note:

.

* For these specifications, resistance measurement shall be made on the leads at a point 0.2" 5 mm from the resistor body.
