MIC5013YM-TR

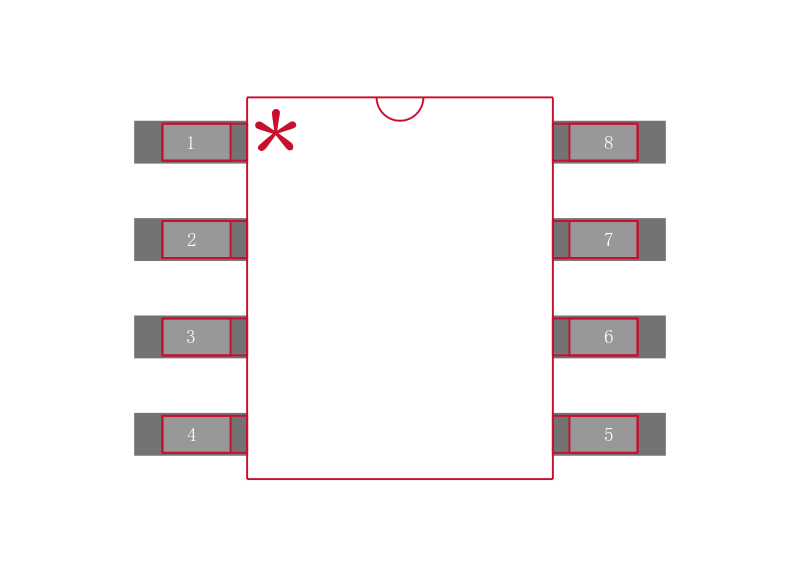

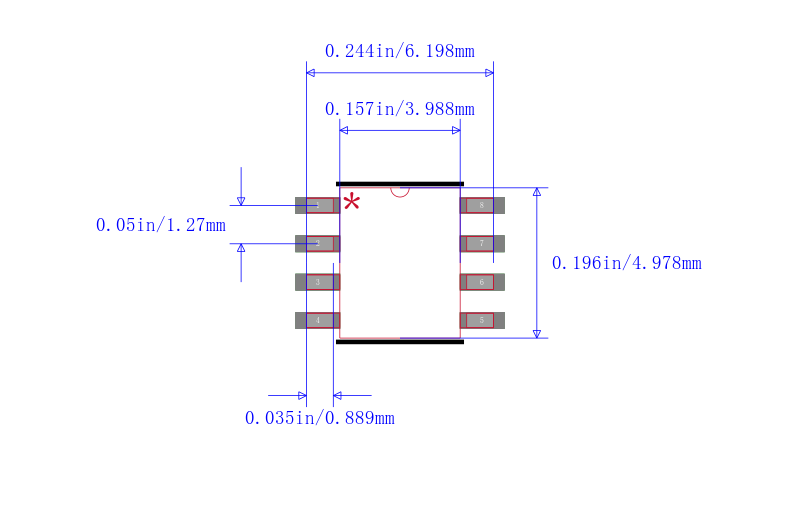

MICROCHIP  MIC5013YM-TR  芯片, 驱动器, 场效应管, MOSFET, 高/低压侧, SOIC-8

The is a 8-pin MOSFET Driver with an over-current shutdown and a fault flag. It is designed to drive the gate of an N-channel power MOSFET above the supply rail high-side power switch applications. The MIC5013 is compatible with standard or current-sensing power MOSFETs in both high and low-side driver topologies. The MIC5013 charges a 1nF load in 60µs typical and protects the MOSFET from over-current conditions. The current sense trip point is fully programmable and a dynamic threshold allows high in-rush current loads to be started. A fault pin indicates when the MIC5013 has turned off the FET due to excessive current.

.

Less than 1µA standby current in the OFF state

.

Internal charge pump to drive the gate of an N-channel power FET above supply

.

Internal Zener clamp for gate protection

.

Programmable over-current sensing

.

Dynamic current threshold for high in-rush loads

.

Fault output pin indicates current faults

.

60µs Typical turn-ON time to 50% gate overdrive
