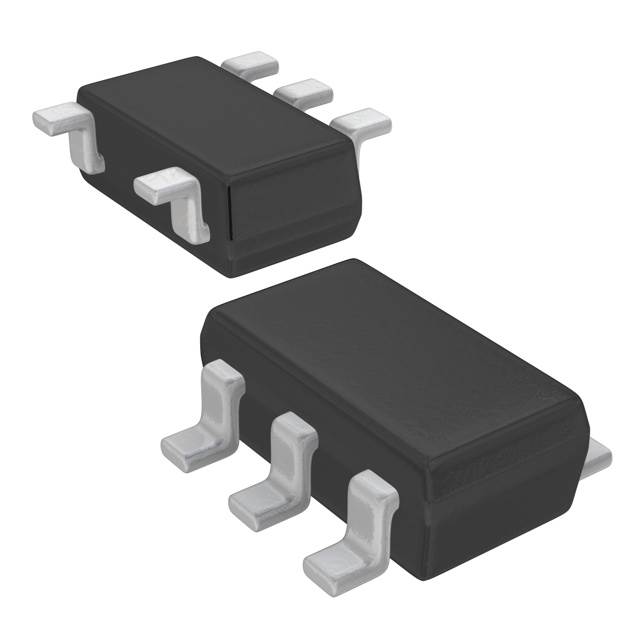

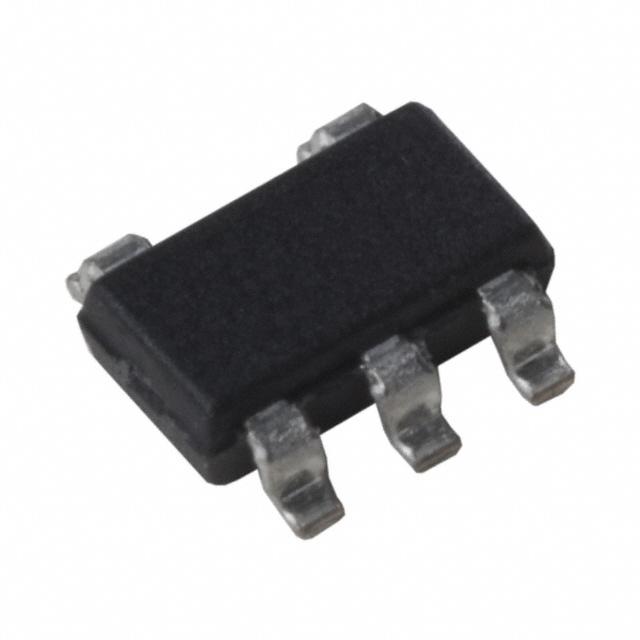

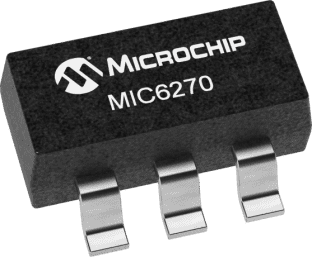

MICROCHIP MIC6270YM5-TR 模拟比较器, 精密电压, 1, 600 ns, 2V 至 36V, SOT-23, 5 引脚
The MIC6270YM5 TR is an Itty-bitty® Comparator with an offset voltage specification of 5mV maximum. The comparator is designed to operate from a single 2 to 36V power supply. Operation from split power supplies is also possible. Its low supply current drain is independent of the magnitude of the supply voltage.
- .
- Input common-mode voltage range includes ground
- .
- Differential input voltage range equal to the power supply voltage
输出电流 20mA @5V
供电电流 300 µA
针脚数 5
静态电流 300 µA
热阻 220 ℃/W
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 36V
安装方式 Surface Mount
引脚数 5

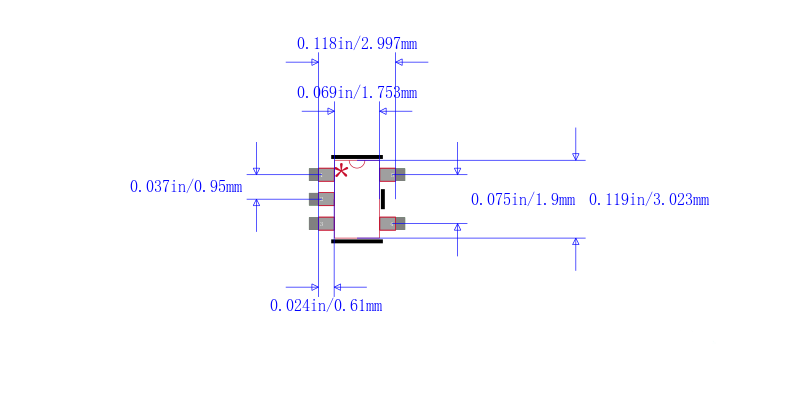

封装 SOT-23-5
高度 1.1 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 Communications & Networking, Clock & Timing, 通信与网络, 时钟与计时
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MIC6270YM5-TR Microchip 微芯 | 当前型号 | 当前型号 |
MIC6270BM5-TR 微芯 | 完全替代 | MIC6270YM5-TR和MIC6270BM5-TR的区别 |
MIC6270YM5 TR 迈瑞 | 类似代替 | MIC6270YM5-TR和MIC6270YM5 TR的区别 |
TS391SN2T1G 安森美 | 功能相似 | MIC6270YM5-TR和TS391SN2T1G的区别 |
