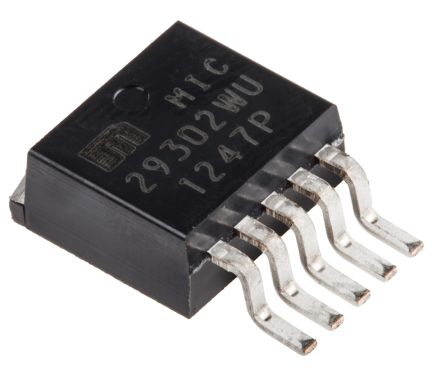

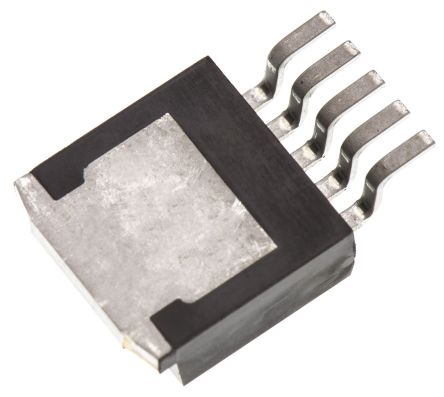

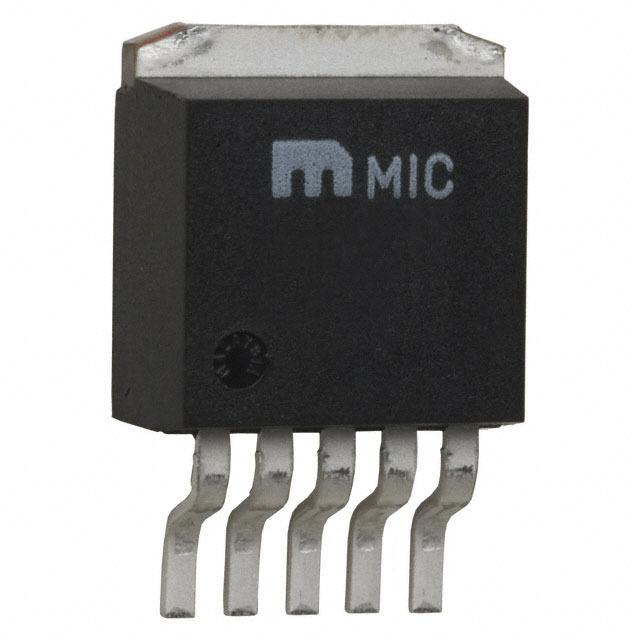

MICROCHIP MIC29302WU-TR 芯片, 稳压器, LDO, 26V输入, 3A, 可调, 5TO263
MIC29302 3A 低压降稳压器
立创商城:
正 Vin=26V Vout=1.25V~25V 3A
得捷:
IC REG LINEAR POS ADJ 3A TO263-5
欧时:
Microchip MIC29302WU-TR LDO 稳压器, 可调输出, 3A最大输出, ±2%精确度, 2.25 → 26 V输入, 5引脚
贸泽:
低压差稳压器 3.0A LDO Adj. + Shutdown
艾睿:
This 1.828 MIC29302WU-TR linear regulator from Microchip Technology gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is Gold Over Nickel V. It has an overall accuracy of Not Included %. This voltage regulation device has Micro D-Sub outputs. With a small input voltage of SKT V and a max of Crimp V, this will supply sufficient power to your circuit. With a 26 output, this is power management at its best. Its polarity is 3. This voltage regulation device has a minimum operating temperature of -55 °C and a maximum of 150 °C.
富昌:
MIC2930x Series 3 A Adjustable Output Surface Mount Voltage Regulator - TO-263-5
Verical:
MIC29302WU-TR
Newark:
# MICROCHIP MIC29302WU-TR LDO, REG, 26VIN, 3A, ADJ, 5TO263
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.25 V ~ 26 V 3A TO-263-5
容差 1 %
输出接口数 1
输出电压 1.25V ~ 25V
输出电流 3 A
针脚数 5
静态电流 3.1 mA
跌落电压 370 mV
输入电压Max 26 V
输入电压Min 2.25 V
输出电压Max 25 V
输出电压Min 1.25 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤26 V
安装方式 Surface Mount
引脚数 5
封装 TO-263-5
长度 10.66 mm
宽度 10.84 mm
高度 4.49 mm
封装 TO-263-5
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 车用, 电源管理, Automotive, 计算机和计算机周边, Computers & Computer Peripherals, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MIC29302WU-TR Microchip 微芯 | 当前型号 | 当前型号 |
MIC29302WU 微芯 | 类似代替 | MIC29302WU-TR和MIC29302WU的区别 |
MIC29302WU TR 迈瑞 | 功能相似 | MIC29302WU-TR和MIC29302WU TR的区别 |
