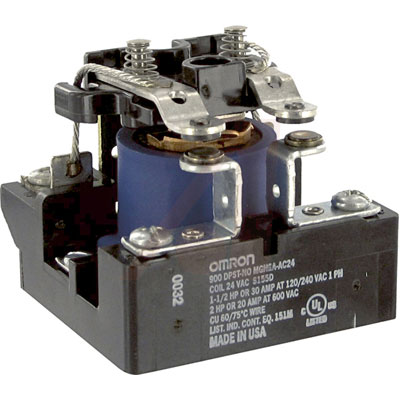

Power Relay 240VAC 30A DPST-NO 63.5mm 63.5mm 55.8mm
** MGN Series – Power Relays**
The MGN Series is a heavy duty power relay offering the user an alternative where high current switching is required. These relays can switch up to 30A at 240 Vac / 28 Vdc. They also have a wide temperature range and the wide selection of voltage ratings and contact configurations makes them ideally suited for various applications. Maintenance time is reduced with the long life expectancy helping to reduce time and costs.
额定电流 30 A
额定功率 9.50 W
触点类型 DPST-NO
功耗 9.5 W
触点额定电流 30 A
线圈电压 240 VAC
线圈电流 40 mA
线圈电压AC 240 V
线圈电阻 1.17 kΩ
线圈功率AC 9.50 W
线圈功率 9500 mW
开关电流Max 30 A
工作温度Max 80 ℃
工作温度Min -45 ℃
额定电压 600 VAC
安装方式 Screw-In, Screw
长度 63.5 mm
宽度 63.5 mm
高度 55.8 mm
触点材质 Silver Alloy
产品生命周期 100000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MGN2A-AC240 Omron 欧姆龙 | 当前型号 | 当前型号 |
PRD-7AY0-240 泰科 | 功能相似 | MGN2A-AC240和PRD-7AY0-240的区别 |
