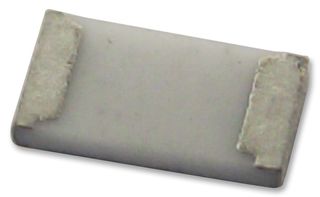

MCMR04X1130FTL

MULTICOMP  MCMR04X1130FTL  片式电阻器, 表面贴装, 陶瓷, MCMR系列, 113 ohm, 50 V, 0402 [1005公制], 62.5 mW, ± 1%

The MCMR series resistors are automotive grade, anti sulphured thick film chip resistor. The resistance range includes E24 and E96 decade values from 1ohm to 10Mohm. These resistors are constructed on top of a high grade ceramic body.

.

EIA 0402, 0603, 0805, 1206 chip sizes available

.

High reliability and stability

.

Automotive grade AEC-Q200 compliant

.

Complaint with IEC 60068-1 55/155/56 climatic category

.

Maximum operation voltage of 50V, 75V, 150V and 200V

.

Power rating of 62.5mW, 100mW, 125mW and 250mW

.

Available in ±1% and ±5% tolerance

.

Temperature coefficient TCR of +200ppm/°C, +100ppm/°C and -200ppm/°C to +400ppm/°C

.

Operating temperature range -55°C to 155°C
