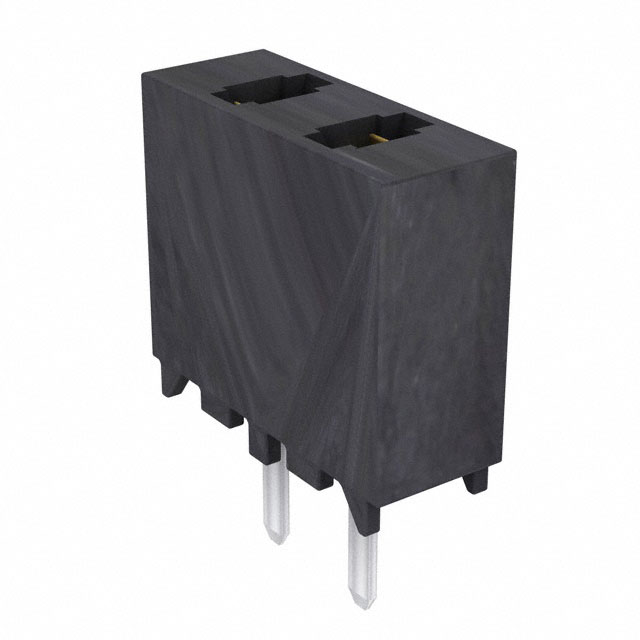

MMS-102-01-L-SV

板至板连接, 2 mm, 2 触点, 插座, MMS Series, 通孔安装, 1 排

The MMS series from are Tiger Claw socket strips. These through hole socket strips mates with Samtec TMMH, TMM, MTMM, MMT, TW, LTMM, ZLTMM, TCMD and TSH series connectors.

.

Pitch spacing is 2mm 2 to 40 contacts per row

.

Single row vertical mounting socket strip

.

High operating temperature range of -55°C to 125°C for 10µ" gold plated contacts

.

Black liquid crystal polymer insulator material

.

Contact material is phosphor bronze

.

Contact resistance is 10mohm

.

Tiger Claw contact system

.

Complies with UL E111594 and CSA 090871_0_000 standards
