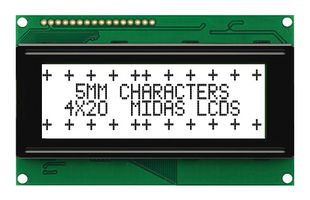

MC42005A6W-FPTLW3

MIDAS  MC42005A6W-FPTLW3  字母数字液晶屏, 20 x 4, 白色底黑色字, 3 V, 并行, 英式, 日式, 半透反射

* Alphanumeric / character LCD module

.

4 lines of 20 characters - 4 x 20 also referred to as 20 x 4

.

Positive mode FSTN material

.

Appearance - black characters on white background

.

Transflective technology, generally for indoor and outdoor applications

.

Chip on board construction COB for easy mounting

.

On board controller SPLC780 or equivalent HD44780 derivative

.

English/Japanese font sets

.

3V logic supply, standard parallel interface

.

Display duty 1/16, Driving bias 1/5

.

White LED backlight

.

Preferred view angle - 6 o"clock

.

-20 to +70°C wide operating temperature range

.

16 way through hole SIL top right connection, 2.54mm pitch

.

Overall max dimensions - 98.0 x 60.0 x 14.5mm

.

Viewing area - 76.0 x 26.0mm

.

5mm character actual dimension 2.95 x 4.75mm
