16位微控制器 - MCU 9S12C64 KOI - PB FREE
Overview
The S12C is part of Our 48/52/80 pin flash-based MCU family, giving you the power and flexibility of the 16-bit core for a wide range general-purpose industrial and automotive network applications.
An on-chip bandgap-based voltage regulator Vreg generates the internal digital supply voltage VDD for a 2.97 V to 5.5 V external supply range.
The inclusion of a phase-lock look PLL circuit allows power consumption and performance to be adjusted.
A total of 50 I/O port pins and two input pins are available in the 80-pin package version.
Up to 12 I/O port bits are available with wake-up capability from stop or wait mode.
MoreLess
## Features
* 16-bit HCS12 CPU
* Multiplexed external bus
* 128 KB flash EEPROM
* 4 KB RAM
* 8-channel ADC, 10-bit resolution
* 1 Mbps, CAN 2.0 A, B software compatible module
* SCI, SPI
* 8-channel 16-bit TIM
* 6-channel 8-bit PWM
## Features Comparison Table
### Family Members Differences
| MC9S12C128| MC9S12C96| MC9S12C64| MC9S12C32
| | |
| | |
频率 25 MHz
电源电压DC 2.35V min
无卤素状态 Halogen Free
时钟频率 25.0 MHz
RAM大小 4 KB
位数 16
FLASH内存容量 65536 B
I/O引脚数 60
存取时间 25.0 µs
内核架构 HCS12
内存容量 256000 B
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 2.75 V
电源电压Min 2.35 V

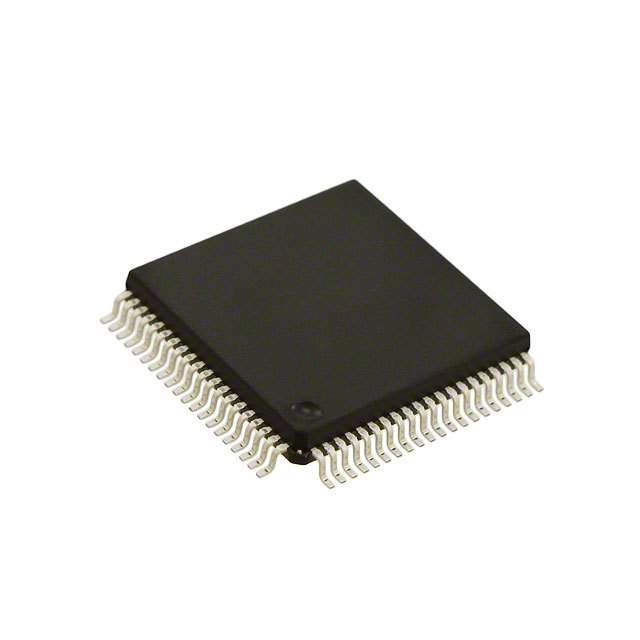

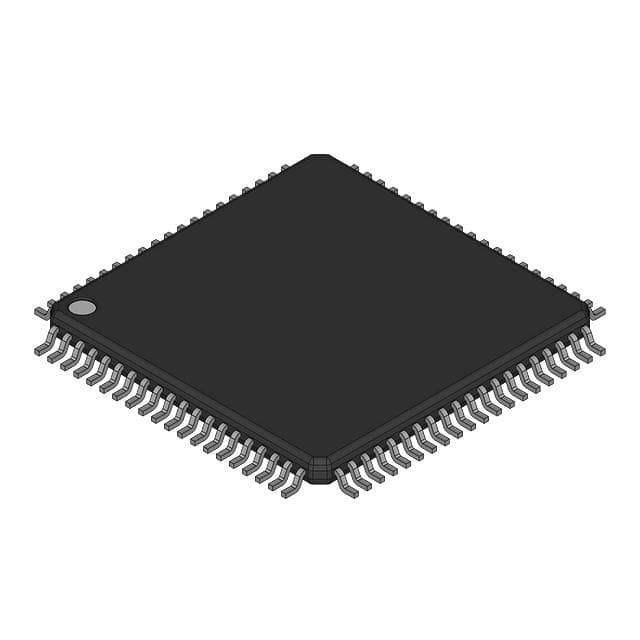

安装方式 Surface Mount
引脚数 80
封装 QFP-80
长度 14 mm
宽度 14 mm
高度 2.4 mm
封装 QFP-80
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC9S12C64CFUE NXP 恩智浦 | 当前型号 | 当前型号 |
MC9S12C64MFUE 恩智浦 | 类似代替 | MC9S12C64CFUE和MC9S12C64MFUE的区别 |
MC9S12C64VFUE 恩智浦 | 功能相似 | MC9S12C64CFUE和MC9S12C64VFUE的区别 |
