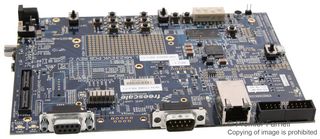

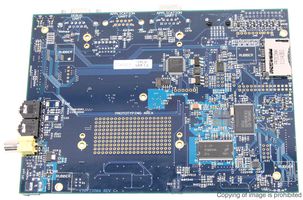

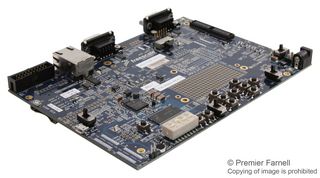

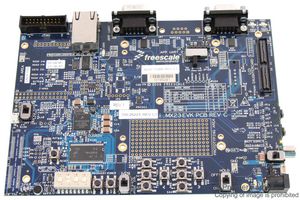

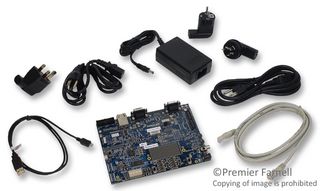

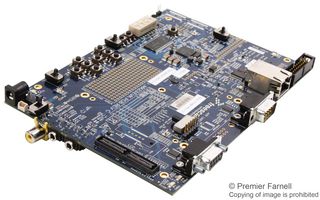

i.MX233 Application Processor and SOC Development Kit 128Mb RAM 2GB NAND Flash Linux
The is an evaluation kit for i.MX233 applications processor preconfigured with Linux. The i.MX233 applications processor based on the ARM926EJ-S can run at speeds up to 454MHz and is targeted for cost sensitive consumer applications. The power management unit PMU integrates a DC to DC switching converter and multiple linear regulators to provide power sequencing for the device itself and drive I/O peripherals such as memories and SD cards as well as providing battery charging capability for Li Ion batteries. Allowing customers to develop, debug and demonstrate their next great product without compromising performance. The kit supports all the features of the device in a small, single board design and an optional LCD add on module to enable a developer"s complete platform at a low price. The provided BSP for Linux enables rapid prototyping to help speed up the processor selection process and quickly deliver a demo into the hands of the project stakeholders.
Never supply more than +5.5V power to the i.MX31, doing so can damage board components.
RAM大小 128 MB
位数 32
内核架构 ARM
内核子架构 ARM9
封装 Board
封装 Board
产品生命周期 Not Recommended for New Designs
制造应用 Consumer Electronics, Industrial, Multimedia, Portable Devices, Embedded Design & Development, Security, Audio, Building Automation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 5A992
