MP0034/3概述

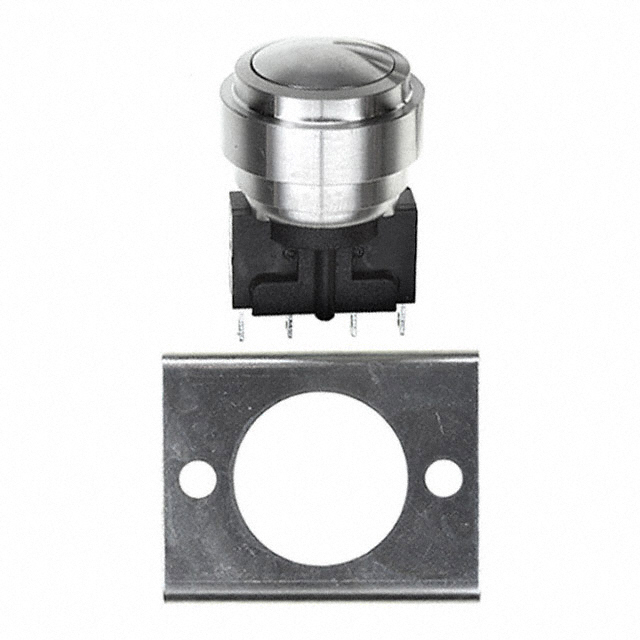

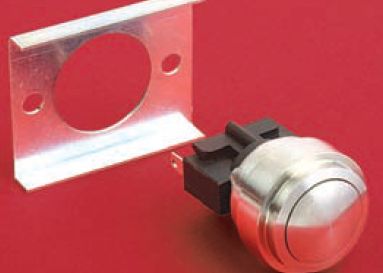

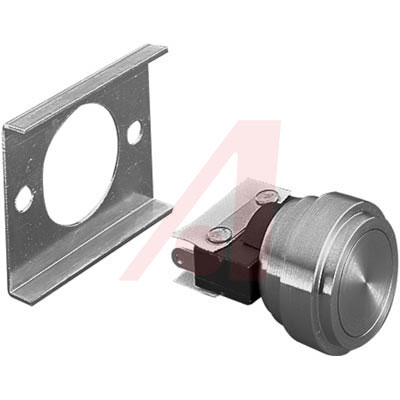

圆弧型面板抗破坏开关,后面板安装,19mm直径

An extensive range of vandal resistant security switches designed with high resistance to wear and tear, corrosion and harsh use in potentially hostile environments.

* Manufactured from Stainless Steel

* Prominent-, Domed- and Low-Profile Buttons

* Front- and Rear-Panel Mounting Options

* Front-Panel Sealing Option


欧时:
Switch,Pushbutton,vandal resistant 5A


贸泽:
Pushbutton Switches DOMED BTN REAR MOUNT


Allied Electronics:
Switch, Pushbutton, domed; vandal resistant; rear mnt; 19mm; SPCO 5A 250V


Verical:
Switch Push Button ON Mom SPDT Round Button 5A 250VAC 28VDC Momentary Contact Solder Panel Mount


Online Components:
Switch Push Button ON Mom SPDT Round Button 5A 250VAC 28VDC Momentary Contact Solder Panel Mount


力源芯城:
圆弧型面板抗破坏开关,后面板安装,19mm直径


Electro Sonic:
Switch Push Button ON Mom SPDT Round Button 5A 250VAC 28VDC Momentary Contact Solder Panel Mount


MP0034/3中文资料参数规格
技术参数

触点电镀 Silver

额定电压DC 250 V

额定电压AC 250 V

额定电流 5 A

绝缘电阻 1.00 GΩ

触点类型 SPDT

触点额定电流 5.00 A

额定电流Max 5 A

工作温度Max 70 ℃

工作温度Min -20 ℃

额定电压 250 VAC

额定电压DC Max 28 V

额定电压AC Max 250 V

封装参数

安装方式 Through Hole

物理参数

颜色 Silver

触点材质 Fine Silver

材质 Stainless Steel

工作温度 -20℃ ~ 70℃

其他

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买MP0034/3
型号: MP0034/3
制造商: Bulgin Components 布尔金原器件
描述:圆弧型面板抗破坏开关,后面板安装,19mm直径
替代型号MP0034/3
型号/品牌 代替类型 替代型号对比

MP0034/3

Bulgin Components 布尔金原器件

当前型号

当前型号

MP0037/3

布尔金原器件

功能相似

MP0034/3和MP0037/3的区别

MP0031/3

布尔金原器件

功能相似

MP0034/3和MP0031/3的区别
