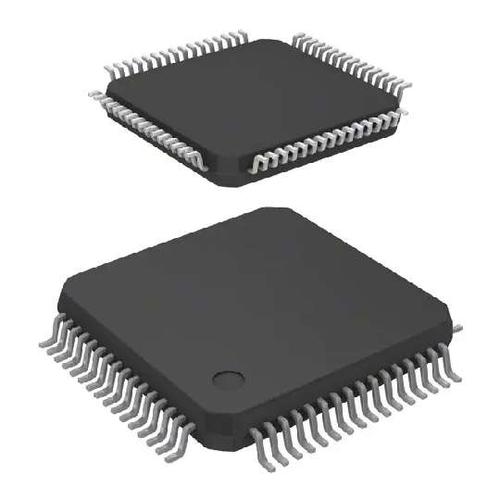

MC9S08DZ60AMLH

NXP  MC9S08DZ60AMLH  微控制器, 8位, 嵌入式CAN, S08D, 40 MHz, 60 KB, 4 KB, 64 引脚, LQFP

The is a 8-bit Embedded CAN Microcontroller based on enhanced HCS08 CPU 20MHz bus with CISC architecture operates at a maximum frequency of 40MHz. The device incorporates 60kB internal flash, 4kB internal RAM, an analog comparator, a can, 24-channel 12-bit A/D converter and 54 general-purpose I/O pins. This device also features peripherals like multi-scalable controller area networks MSCAN CAN 2.0 A/B software compatible module, one inter-integrated circuit IIC bus module to operate at up to 100kbps, one serial peripheral interface modules SPI, two serial communications interface SCI modules and real-time counter RTC.

.

HC08 Instruction set with added BGND instruction

.

Support for up to 32 Interrupt/reset sources

.

Two very low power stop modes

.

Reduced power wait mode

.

Very low power real time interrupt for use in run, wait and stop

.

Loop-control Pierce oscillator XOSC

.

Multi-purpose clock generator MCG

.

Watchdog computer operating properly COP reset

.

Low-voltage detection with reset or interrupt - selectable trip points

.

Illegal opcode detection with reset

.

Illegal address detection with reset

.

Flash block protect

.

Loss-of-lock protection

.

MSCAN - CAN protocol version 2.0 A, B

.

Two SCIs supporting LIN 2.0 protocol and SAE J2602 protocols

.

24 Interrupt pins with selectable polarity on each pin

.

Hysteresis and configurable pull device on all input pins

.

Configurable slew rate and drive strength on all output pins

.

Single-wire background debug interface

.

On-chip, in-circuit emulation ICE with real-time bus capture
