KEIL MCB11U10U Evaluation Board, Cortex M0, ULink2, Cortex-M0, 50MHz MCU with USB

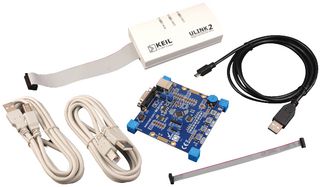

is a Keil MCB1000 evaluation board with ULINK2 debug adapter. Board enables to create and test working programs based on the NXP LPC11U14 Cortex-M0 processor based device with USB interface. The NXP LPC11U14 microcontroller provided with the MCB1000 board is a high end Cortex-M device with advanced ADC and serial I/O capabilities. This device include a serial wire debug interface for downloading and debugging. They do not support a JTAG interface. A 12MHz crystal provides the clock signal for the CPU. The Cortex debug connector provides support for serial wire debug feature of the Cortex-M device. The MCB1000 board connects the on chip serial UART to the ST3232 which converts the logic signals to RS232 voltage levels. ULINK2 debug adapter connects PC"s USB port to target system and allows to program and debug embedded programs on target hardware.
- .
- 50MHz ARM Cortex-M0 processor based MCU
- .
- On chip memory of 32KB flash and 6KB RAM
- .
- USB 2.0 Device
- .
- Serial interface
- .
- Potentiometer for ADC input
- .
- Up to 42 GPIO
- .
- 8 User LEDs + power
- .
- 4 push buttons 2 GPIO, ISP, & reset
- .
- Power via USB connector
- .
- 10 pin Cortex debug interface connector
Do not attach additional power supplies such as batteries while the USB supplies power to the MCB1000. This may harm the PC.
