MC908GZ60CFUE

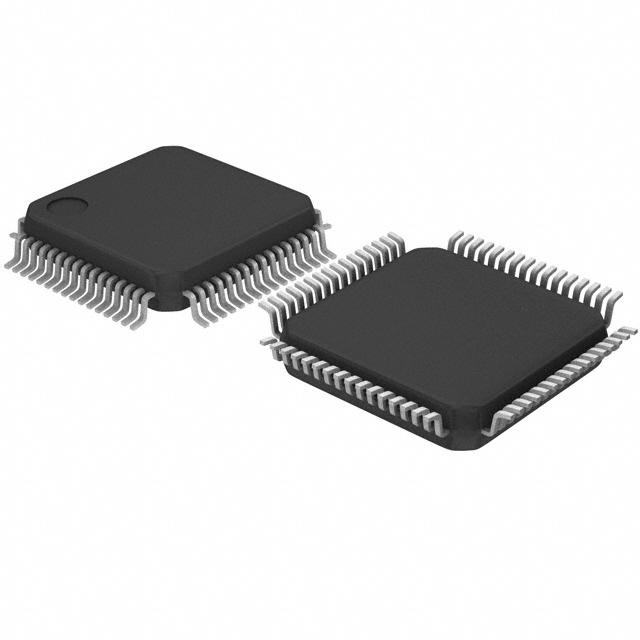

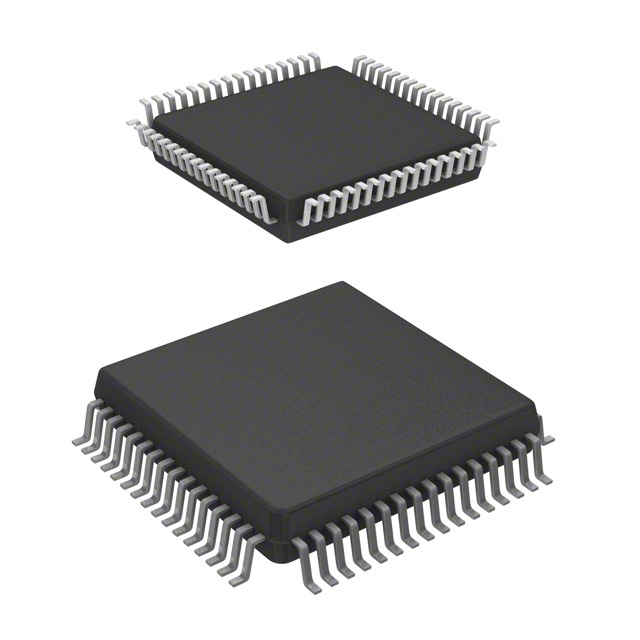

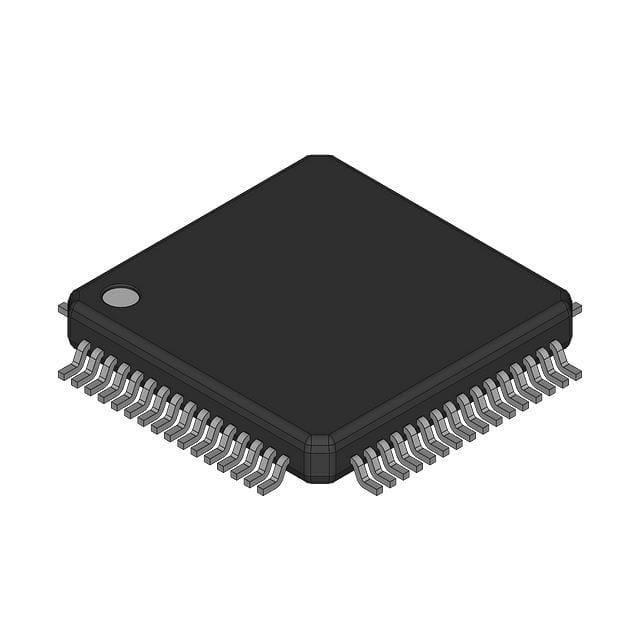

MCU 8Bit HC08 HC08 CISC 60KB Flash 3.3V/5V 64Pin PQFP Tray

* High-performance M68HC08 architecture optimized for C-compilers * Fully upward-compatible object code with M146805, and M68HC05 Families * Up to 2048 bytes of random-access memory RAM * Up to 60 KB of on-chip FLASH memory * 8-MHz internal bus frequency * Up to 24 channels of 10-bit Analog to Digital Converter ADC * Clock Generation Module CGM supporting 1-MHz to 8-MHz crystals * In-system programming ISP * MSCAN08 Freescale scalable controller area network controller implementing 2.0b protocol as defined in BOSCH specification dated September 1991 * System protection features: Optional computer operating properly COP reset, Low-voltage detection with optional reset and selectable trip points for 3.3-V and 5.0-V operation, Illegal opcode detection with reset and Illegal address detection with reset
