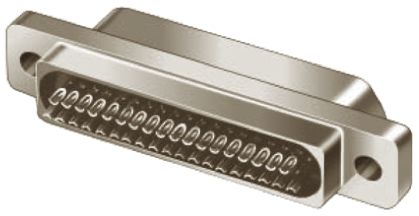

Micro D Connectors MIL-DTL-83513 , Solder Bucket
Glenair Micro D Solder Cup Connectors are military standard metal shell connectors ideally suited for making strong and reliable connections within environmental and EMI applications.The Micro D connectors solder cup contacts can accomodate 26 AWG solid or stranded wire. The LCP insulators resist damage from excessive soldering heat and the connectors are fully potted with epoxy resin.
Electroless nickel plated metal shell
Contact Current rating 3A max.
Magnetic permeability 2.0 μΩ max.
Operating temp -55 to +150 °C
500 mating cycles
### 认可
MIL-DTL-83513, BS9523F0002, BS9523F0013
### 标准
MIL-DTL-83513, BS9523F0002, BS9523F0013
触点数 25
极性 Male
线规 26 AWG
额定电流 3 A
绝缘电阻 5000 MΩ
排数 2
针脚数 25
拔插次数 500
额定电流Max 3 A
工作温度Max 150 ℃
工作温度Min -55 ℃
接触电阻Max 8 mΩ
安装方式 Solder
长度 30.01 mm
宽度 10.57 mm
高度 7.87 mm
触点材质 Beryllium Copper
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Bulk
制造应用 Defence, Military & Aerospace
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
