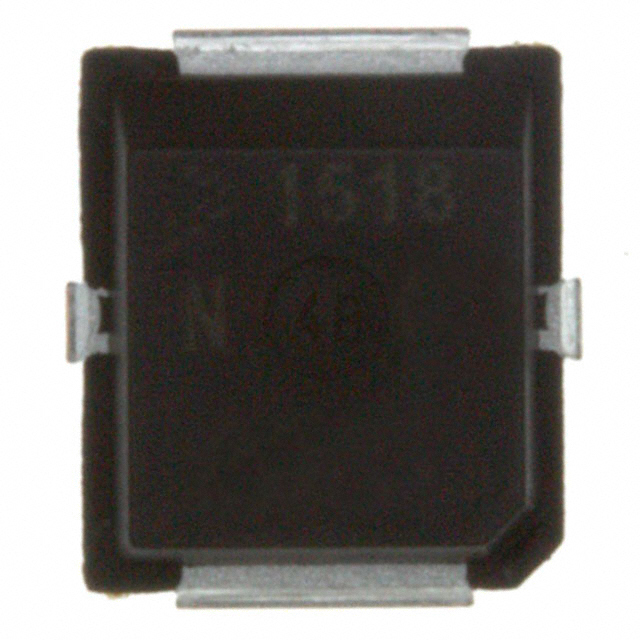

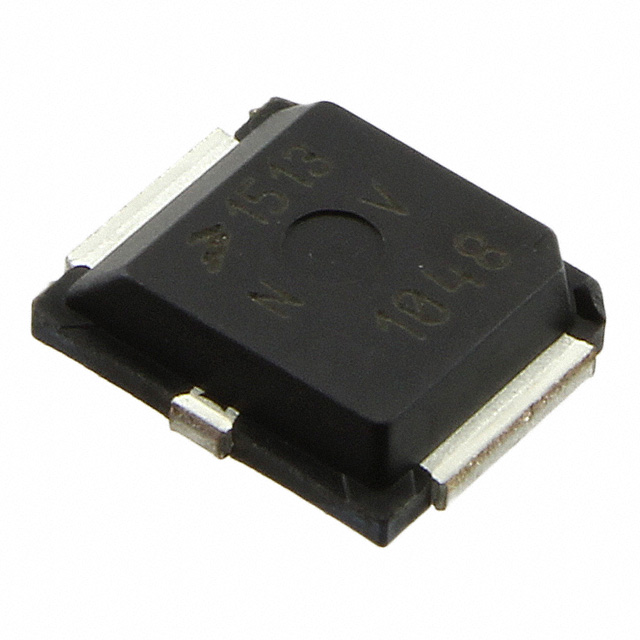

MRF1518NT1

晶体管, 射频FET, 40 V, 4 A, 62.5 W, 450 MHz, 520 MHz, PLD-1.5

Overview

The is designed for broadband commercial and industrial applications with frequencies to 520 MHz. The high gain and broadband performance of this device make it ideal for large–signal, common source amplifier applications in 12.5 volt mobile FM equipment.

MoreLess

## Features

* Specified Performance @ 520 MHz, 12.5 Volts

Output Power: 8 Watts

Power Gain: 13 dB

Efficiency: 60%

* Capable of Handling 20:1 VSWR, @ 15.5 Vdc, 520 MHz, 2 dB Overdrive

* Excellent Thermal Stability

* Characterized with Series Equivalent Large–Signal Impedance Parameters

* N Suffix Indicates Lead-Free Terminations. RoHS Compliant.

* In Tape and Reel. T1 Suffix = 1,000 Units per 12 mm, 7 Inch Reel.
