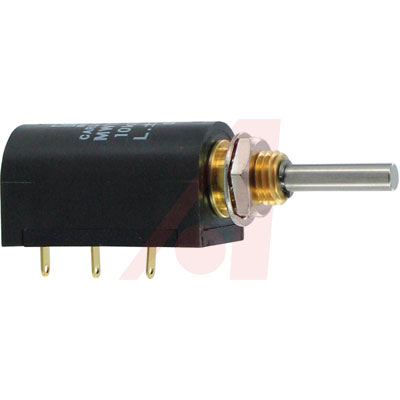

MW12B-10L-1K

ETI SYSTEMS MW12B-10L-1K Rotary Potentiometer, Wirewound, 1KΩ, 1W, ± 3%, MW12B Series, 10 Turns, Linear

MW12 Precision Wirewound Multi-Turn Potentiometers

.

* Life Shaft Revolutions: ** 1,000,000. ** Resistance Tolerance:** 3%. ** Linearity:** 0.25%. ** Power Rating:** 1.5 watts @ 70°C. ** Operating Temperature Range:** -55°C to +105°C. ** Insulation Resistance: ** 100 Megohms minimum at 500 VDC. ** Dielectric Strength:** 1000 VAC minimum. ** Rotational Torque:** 0.4 oz. in. maximum.** Stop Strength: ** 20 oz. in. ** Options:** 3 and 5 turn models, other resistance values, hybrid element, shaft modifications, sealed construction, servo mount. See page for turns counting dials.

Recommended for medical equipment non-life support, test and lab equipment, industrial applications.
