MW20B-10-100K概述

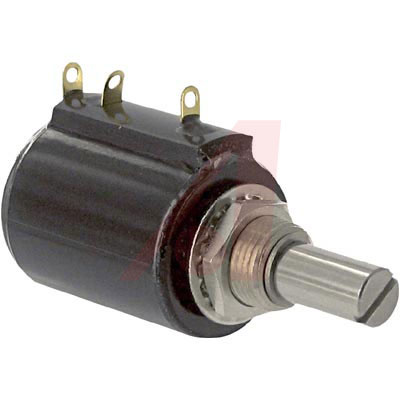

ETI SYSTEMS MW20B-10-100K Rotary Potentiometer, Wirewound, 100KΩ, 2W, ± 3%, MW20 Series, 10 Turns, Linear
Nickel plated brass bushing, stainless steel slotted shaft and gold plated terminals.- .
- * Life Shaft Revolutions:** 2,000,000. ** Linearity:** 0.25%. ** Resistance Tolerance:** 3% ** Power Rating:** 2 watts @ 70°C. ** Operating Temperature Range:** -55°C to +105°C. ** Insulation Resistance:** 100 MegΩ minimum at 1000 VDC. ** Dielectric Strength:** 1000 VAC minimum. ** Rotational Torque:** 0.6 oz. in. maximum. ** Stop Strength:** 96 oz. in. ** Options:** Other resistance values, hybrid element, shaft modifications, sealed construction, high torque, slipping clutch, servo mount, multiple gangs. See page for turns counting dials.
在线购买MW20B-10-100K
型号： MW20B-10-100K
制造商：
ETI
描述：ETI SYSTEMS MW20B-10-100K Rotary Potentiometer, Wirewound, 100KΩ, 2W, ± 3%, MW20 Series, 10 Turns, Linear
