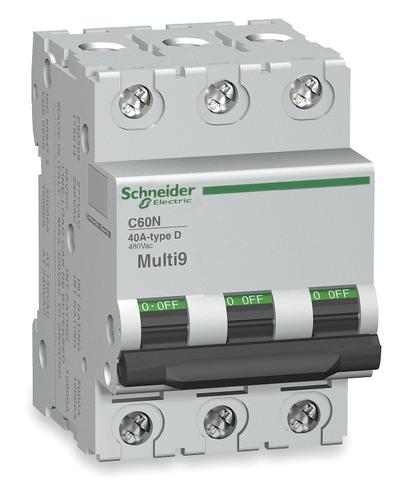

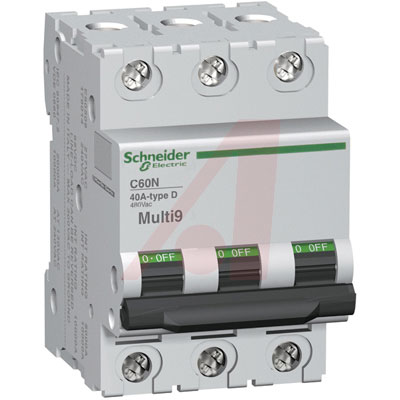

9 C60N 补充保护器 C 曲线 多 9 C60N 补充保护器 C 曲线可为设备内部的敏感电子补充或提供额外保护 跳闸曲线：C — 7-10 倍额定值 正向指示触点断开 电流额定值 0.5 到 63 A Merlin Gerin 微型断路器 Merlin Gerin – 微型断路器 微型断路器；触点位置由开关杠杆指示
**Features:
**
* Small Size — L × W × H, mm: 81 × 18 Per Pole × 75**
**
* DIN Rail Mount**
**
* Two Trip Curves: C — 7-10 Times Rating; D — 10-14 Times Rating**
**
* Positive Indication of Contact Disconnect**
Applications Permitting Supplementary Protectors:
**
* Supplements or Provides Additional Protection for Sensitive Electronics Inside the Equipment**
**
* Used on the Load Side of Branch Circuit Protection to Protect Criteria or Sensitive Internal Circuitry Such as: Computers and Microprocessors, Communications Equipment, Electronic Controllers and Power Supplies**
**
* Permitted for Protection of Motor Control Circuits NEC 430-72, Unless Transformers Are in Circuit, Then UL 489**
Specifications:
**
* Ampere Ratings: From 0.5 to 63 Amps**
**
* 10K Air @ 120/240 VAC; 5K Air @ 480Y/277 VAC**
**
* DC Ratings C-Curve Only: 1-Pole — 60 VDC; 2-Pole — 125 VDC
