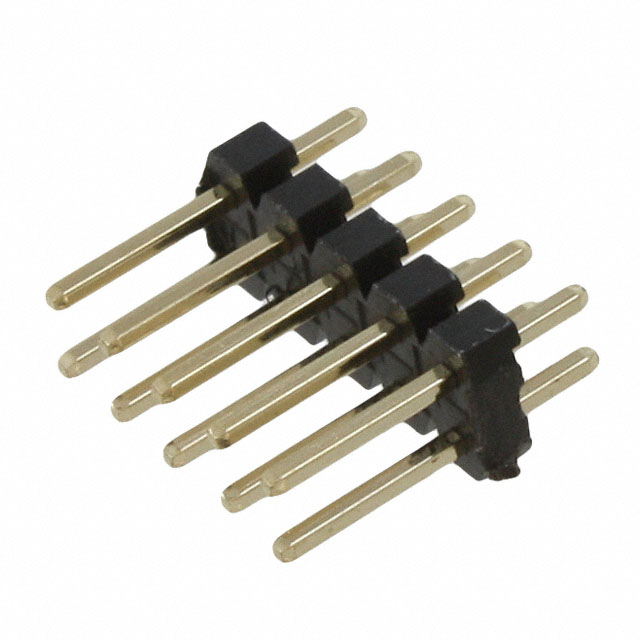

HARWIN M22-2580505 Board-To-Board Connector, 2mm, 10Contacts, Header, M22 Series, Through Hole, 2Rows
Connector Header Through Hole 10 position 0.079" 2.00mm
得捷:
CONN HEADER VERT 10POS 2MM
安富利:
2.00mm 0.079" Pitch DIL Vertical 2.4mm PC Tail Pin Header, 5mm mating pin height, gold, 5+5 contacts
Chip1Stop:
Conn Unshrouded Header HDR 10 POS 2mm Solder ST Thru-Hole Bag
Newark:
# HARWIN M22-2580505 Board-To-Board Connector, 2 mm, 10 Contacts, Header, M22 Series, Through Hole, 2 Rows
触点数 10
极性 Male
触点电镀 Gold
额定电流 1A/触头
排数 2
针脚数 10
额定电流Max 1 A
接触电阻Max 20 mΩ
安装方式 Through Hole
引脚数 10
引脚间距 2.03 mm
长度 10 mm
宽度 4 mm
高度 6.5 mm
引脚间距 2.03 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
